Tetrál Inverse

Break the mold, or rather, turn it upside down with Tetrál Inverse, the open cell metal ceiling created by CEIR to bring to life the most daring and original design projects, always under the hallmark of functionality.

“∩” Profile - PLAIN or PERFORATED

Tetrál Inverse modules evoke the classic design of grid systems but have blades curved downward in only one direction-therefore with a Π a profile instead of a U profile-and perforated. To highlight this detail and the three-dimensional effect of the ceiling, we provide you with a wide palette of colors and textures, and you can even ask us to customize the interior and exterior finish of the profiles with different colors.

Designed to be seamlessly connected to one another, Tetrál Inverse modules can be arranged as a relaxing, uninterrupted expanse or used individually or in zones for a visually striking ceiling.

Thanks to the T15 grid or swing-down Delta suspension systems, the installation and demounting of Tetrál Inverse is quick and easy. With the swing down system, each panel is fully downward demountable and can hang without being completely removed. In addition, the panels can be combined with sound-absorbing materials, so they give you acoustic control and sophisticated design in one product.

Details
SUPPLY FORM
Unassembled / assembled panels
MATERIAL
0,46 mm th. aluminium
SECTION BLADE
“Π”, base 15 (h 40) mm
CELL SIZE
…x… mm
PANEL SIZE
1200x600 mm
FINISH
Double colour. One inside - one outside
SUSPENSION
Delta type or T15 system
QUANTITY
… m2

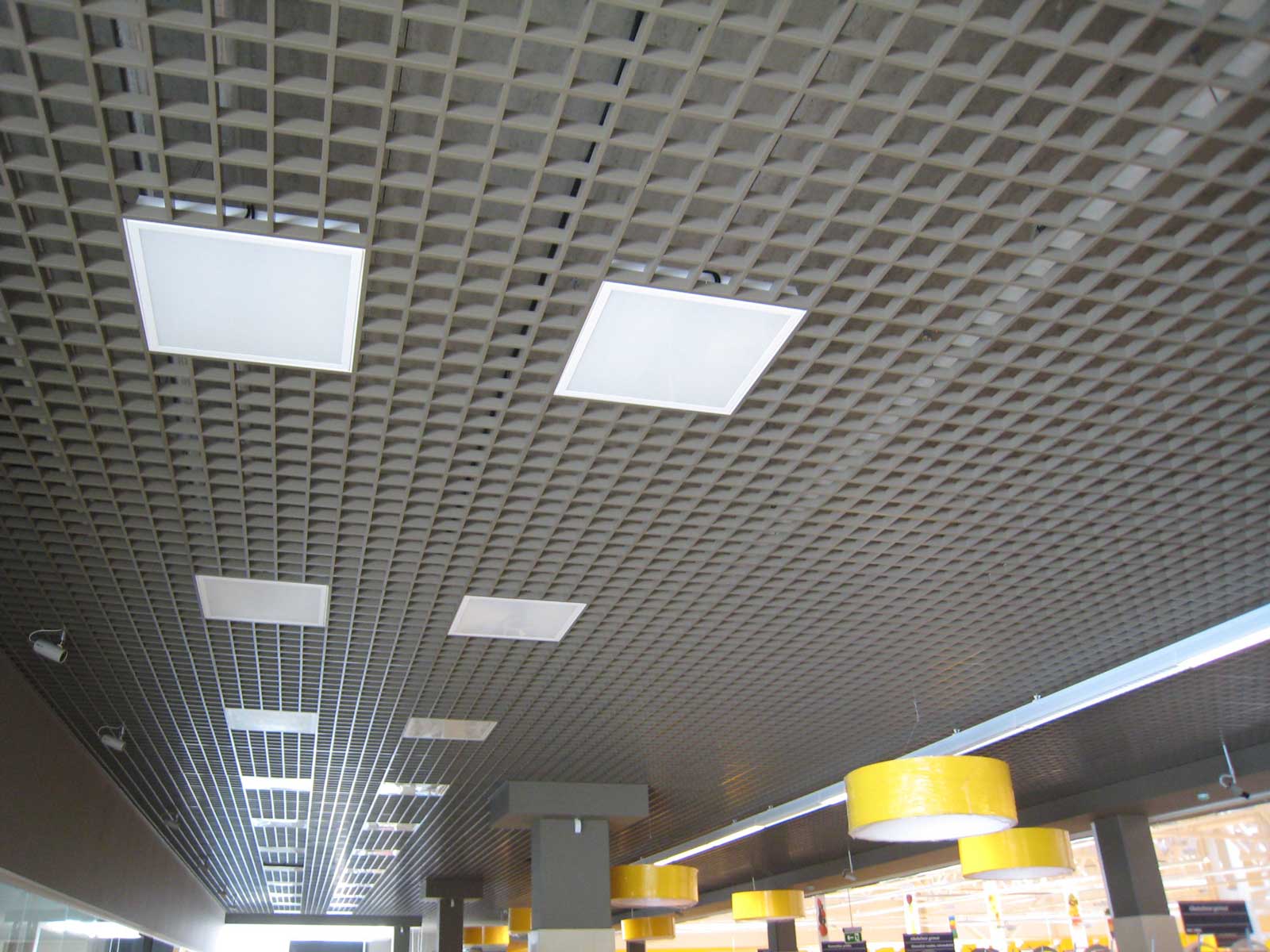

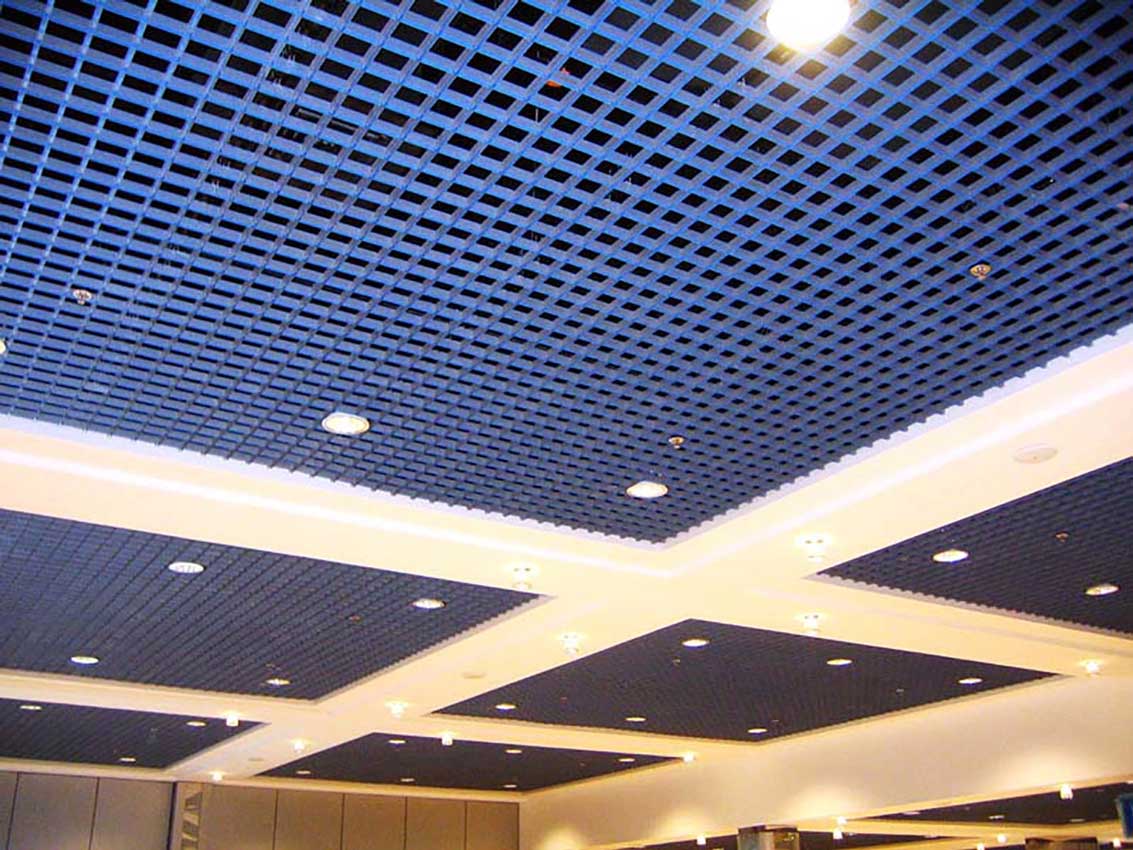

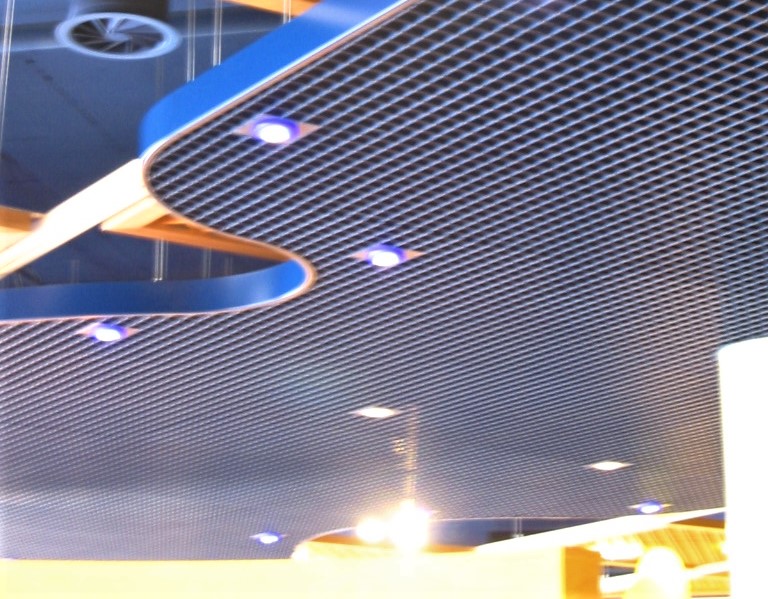

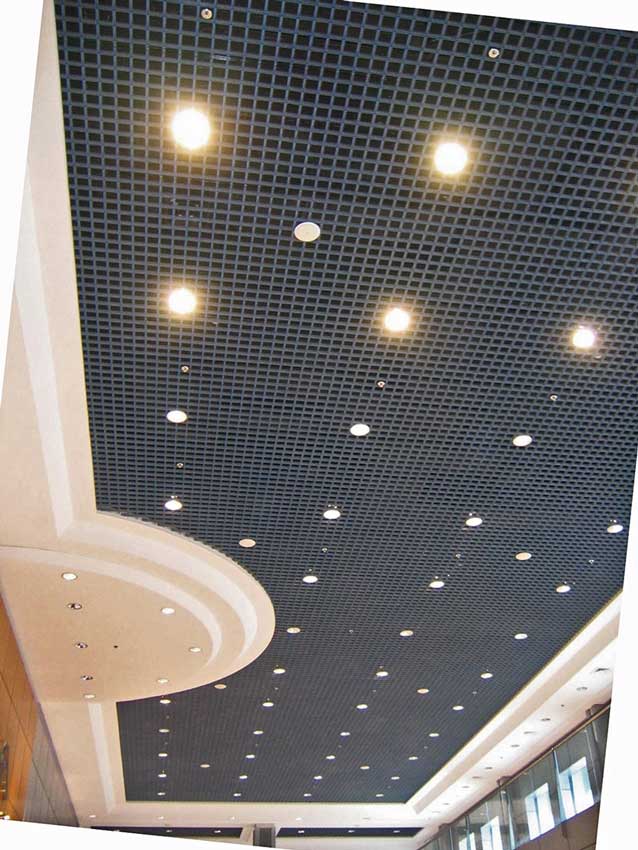

Gallery

technical details

FEATURES

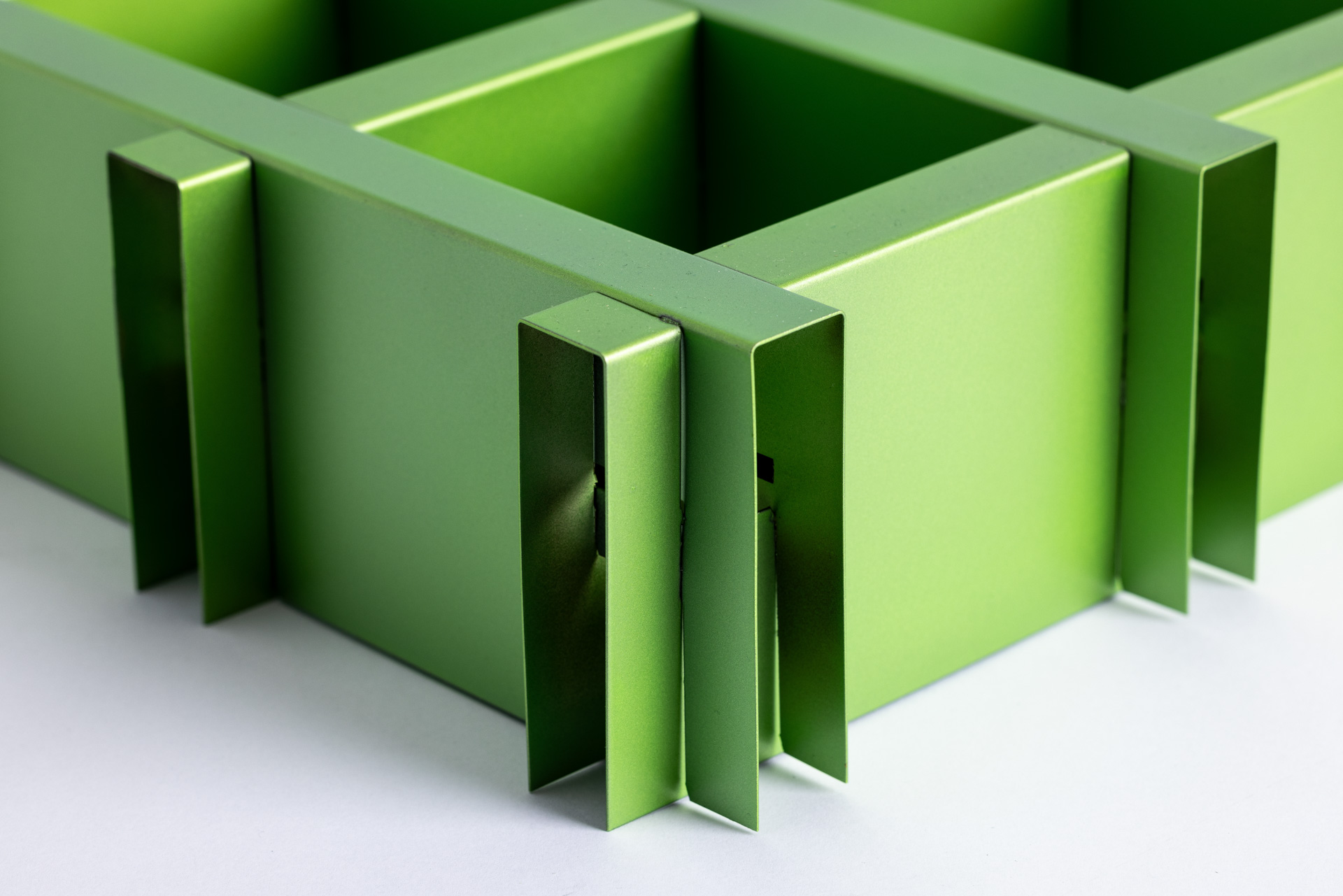

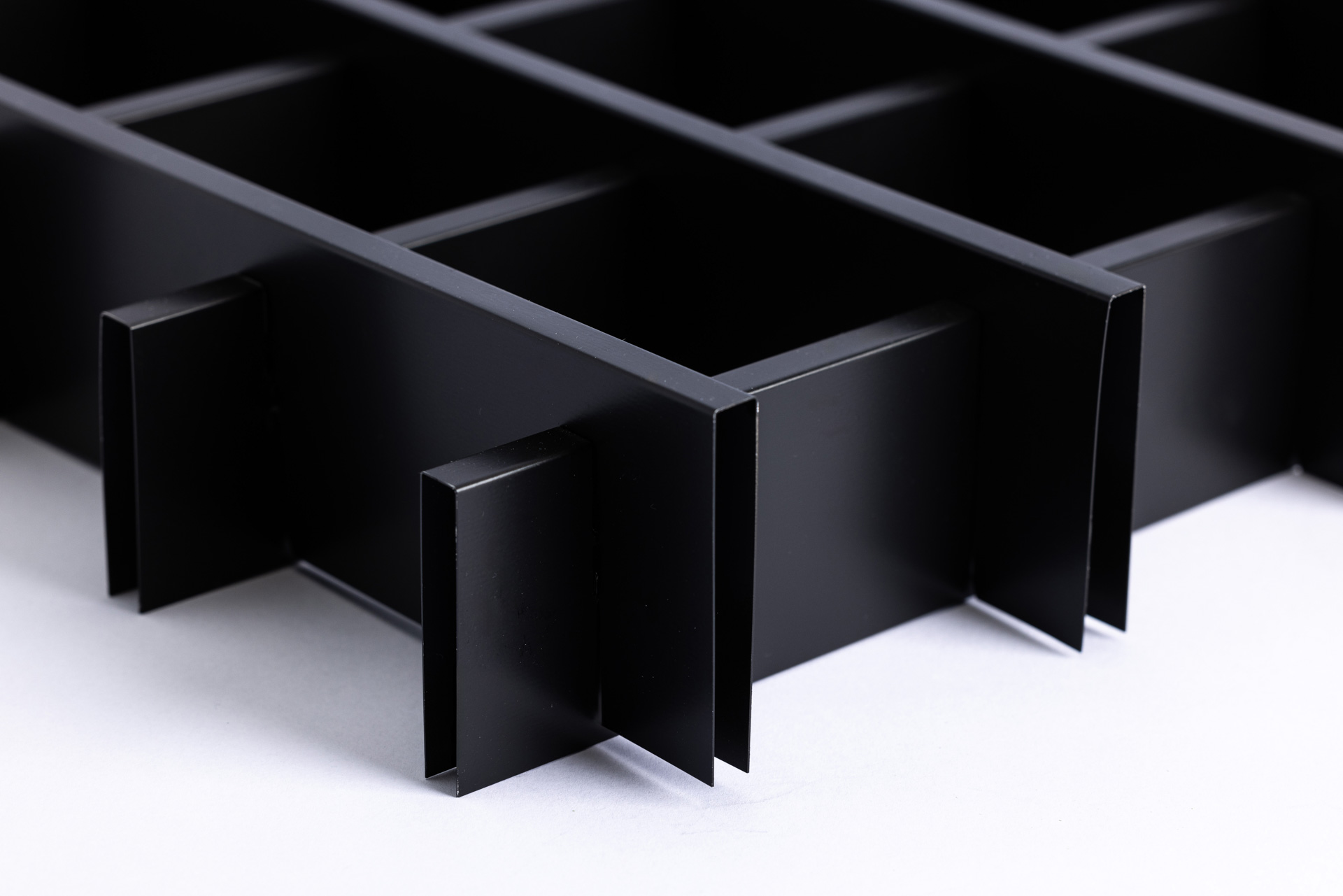

Inverse features 1200×600 mm modular panels,made up of “Π” shaped blades 15 mm base and 40 mm height, which suitably coupled form a square cell.
Cell sizes are available from 86×86 mm up to 450×150 mm. Height 40 mm.
The Tetrál Inverse blades are made by bending system, which gives: the accuracy of profiles, more square edges and blades perfectly straight. Inverse is supplied perforated. Standard perforation patterns are as follows: hole 1,50 mm, 22% free opening, 3 mm pitch hole 2,50 mm, 19% free opening, 5 mm pitch.
The inner and outer of blades can be of same colour, or in different colours for every decorative purpose.
The finishes are a choice of two colours, one for the inside and one for the outside of the blade.

SUPPLY FORM

Inverse is usually supplied unassembled.
It allows for easier packages and more economic transports. Upon request, the panels can also be supplied assembled.

FIRE REACTION

CEIR ceilings are classified as “non-combustible” according to international standards.
Euroclass A1
Euroclass A2-s1, d0 for the post-painted version.

INSTALLATION

With the ceiling system solutions designed from Ceir for Tetrál Inverse, designers and architects can define their projects while producing a wholly unique design and in a simple way.
Available:
– trackless solutions: Delta, T15 system (lay-on)
Choose the installation system that meets your needs.

ANTI-SEISMIC VERSION

Upon request, Tetrál Inverse ceiling is also available in earthquake-proof version with Delta Anti-Seismic system (trackless).

FINISHES
MATERIALS AND COLORS

WHITE

SILVER - REF 9006

CLEAR LACK - ALU COLOR

BLACK

C100_CEC NCS S 4040 Y80R-0001

C100_CEC RAL 3005

C100_ CEC RAL 3007

C100_ CEC RAL 8012

C100_ CEC RAL 8029

C100_ CEC RAL SILVER 9007

C100_ CEC TITANIUM 054.23

ANODISED

MILL FINISH (RAW)
