Tokyo

Tokyo is the innovative aluminum alveolar panel developed by Ceir for laser cutting applications that require maximum precision.

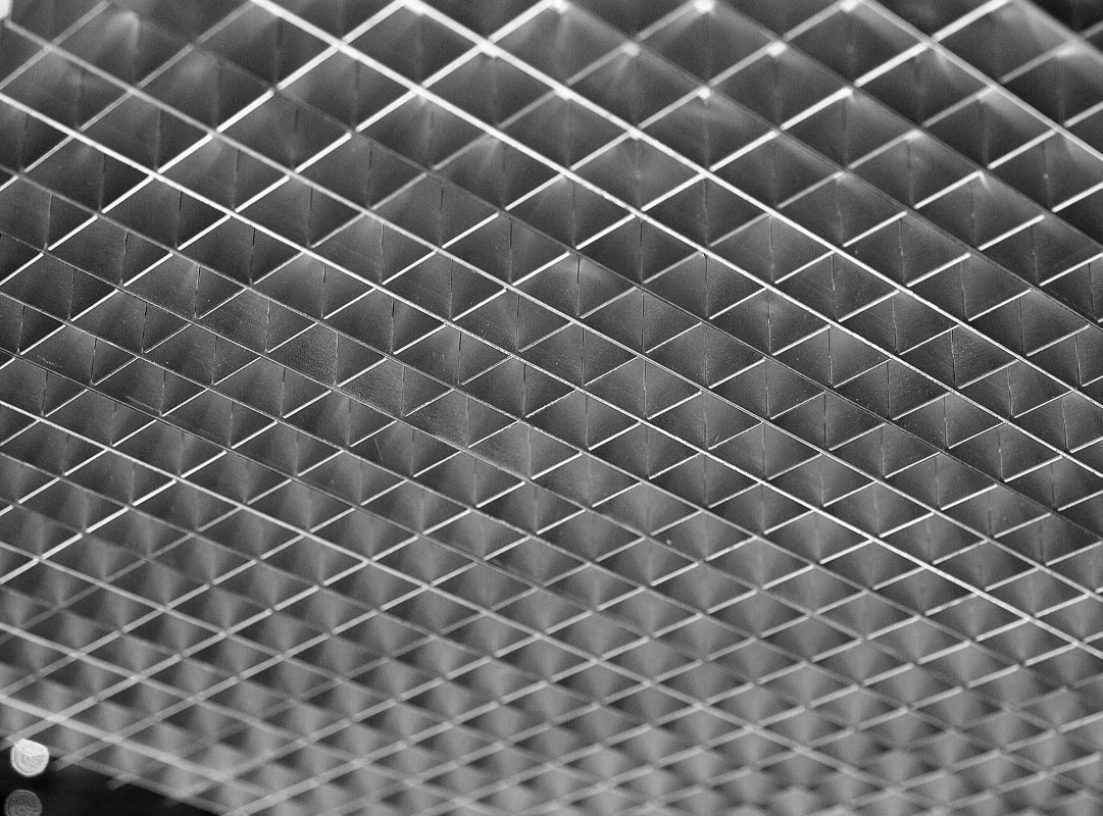

Thanks to its square microcell structure (13x13 mm), this professional grid offers extremely stable support during operation.

Available in a standard format of 1.200x600 millimeters but also with customizable sizes, the Tokyo grid cell plane is especially suitable for cutting thin materials that require a more intense suction effect.

In fact, the square cell structure allows the suction to be distributed evenly over the entire work area. In addition, it does not retain laser dirt in the holes.

Details
MATERIAL
Anodized or raw aluminum
SECTION BLADE
0,50 mm
CELL SIZE
13x13 h 13mm; 13x13 h 25mm; 13x13 h 40mm
PANEL SIZE
1200x600 mm; Customized (on request)
PACKAGING
10 pc per box; Size 124x61 h 20 cm Weight 22 kg

Gallery

technical details

ALUMINUM ALVEOLAR PANEL: FEATURES AND USE

Tokyo aluminum alveolar panel has unique characteristics: it is lightweight, compression and shear resistant, durable, recyclable, and nonflammable (reaction to fire Euroclass A1). It is mainly used for automatic machine tops for laser cutting, marking and engraving, and in all applications where an optimum stiffnessto-weight ratio must be achieved. The applications of alveolar grid are many and in different sectors: design and fashion, packaging, engraving and cutting of industrial or handicraft plastic, wood and textile products, machine tools, and many others.

PROPERTIES

Tokyo is the ideal answer when you have needs such as:
• lightness
• rigidity
• resistance to compression, shear, corrosion
• flatness
• fire safety – Euroclass A1

FINISHES
MATERIALS AND COLORS

Anodized aluminum / raw aluminum
BLACK OR OTHER COLORS
