Tetrál B

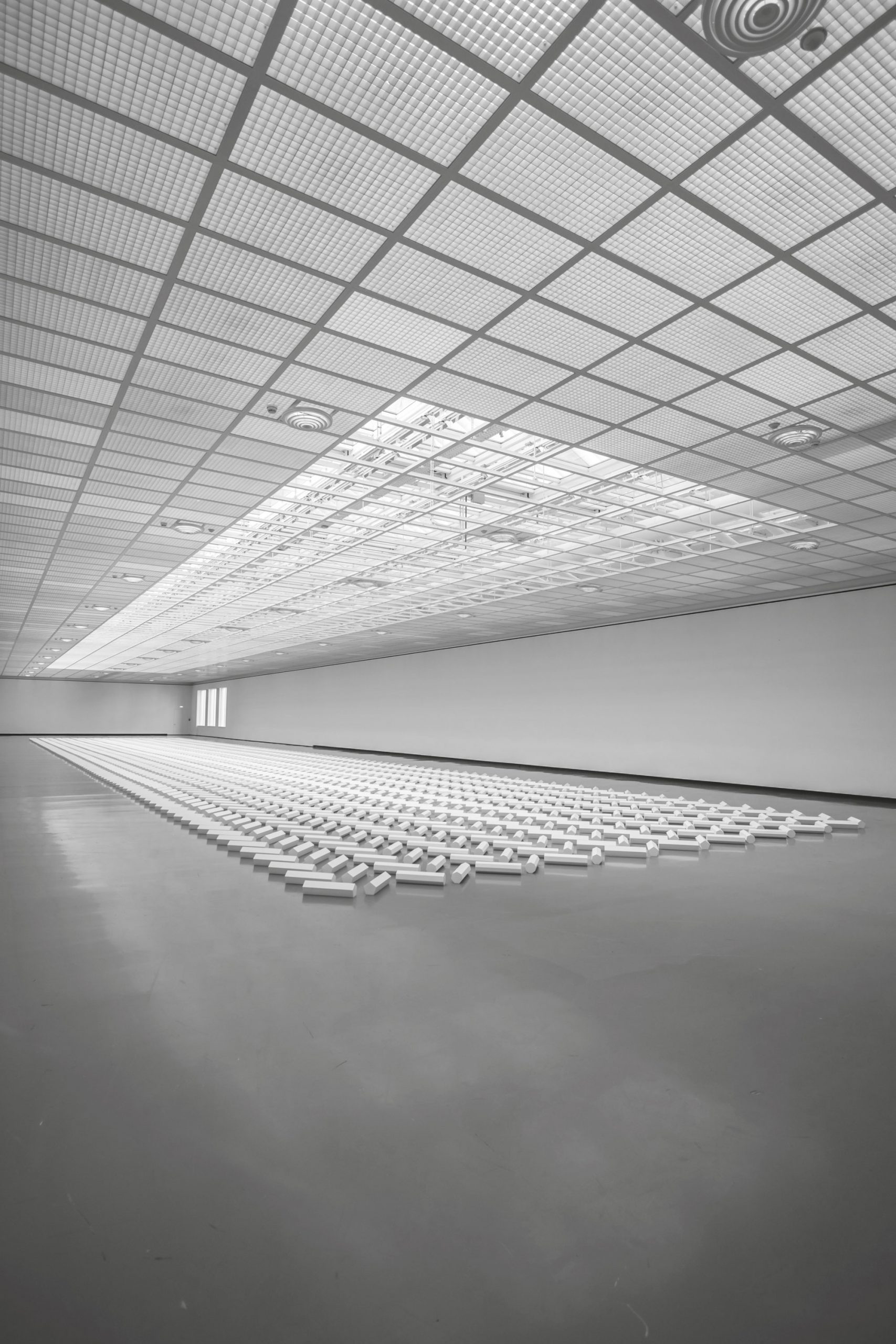

Inspired by the traditional wooden grid, Tetrál B reinterprets the open cell ceiling desing with an eclectic and up-to-date style that enhances your freedom of expression to the fullest in any context.

“U” Profile - PLAIN or PERFORATED

Made of aluminium or steel, Tetrál B is composed by U-shaped section profiles of variable width and height. The wide choice in cell and module sizes as well as in available finishes makes this suspended ceiling extremely versatile and suitable for different architectural applications: offices and professional studios, large public areas such as airports and stations, and many more. Moreover, the panels can be microperforated in case you have special needs for sound absorption and room ventilation.

You can combine the modules with other solutions to create more complex patterns and give more liveliness and fullness to the ceiling, or use them individually if you like a simpler design.

You also have ample flexibility when it comes to mounting: whether you choose the swing-down Delta system, or the integrated Tetrál or lay on (visible) T15 / T24 grid system, Tetrál b will always provide you with a quick and easy installation.

Details
SUPPLY FORM
Unassembled / assembled panels
MATERIAL
0,40 mm th. aluminium
SECTION BLADE
“U”, base 4/5/10/15/20 mm, h 30-80 mm
CELL SIZE
…x… mm
PANEL SIZE
1200x600 mm, 600x600 mm
FINISH
SUSPENSION SYSTEM
Delta system, Tetrál or T15/T24 system
QUANTITY
… m2

Gallery

technical details

FEATURES

Tetrál B is provided in 5 variations: Tetràl B4, B5, B10, B15 and Tetràl B20, depending on the width of the profile base.
Tetrál B features 600×600 mm (or 1200x600mm), made up of “U” shaped profiles, which suitably coupled form a square cell.
Cell sizes from 30×30 mm up to 300×300 mm.
Heights from 30 mm up to 80 mm.
Tetrál B blades are made by bending system, which gives: the accuracy of profiles, more square edges and blades perfectly straight.

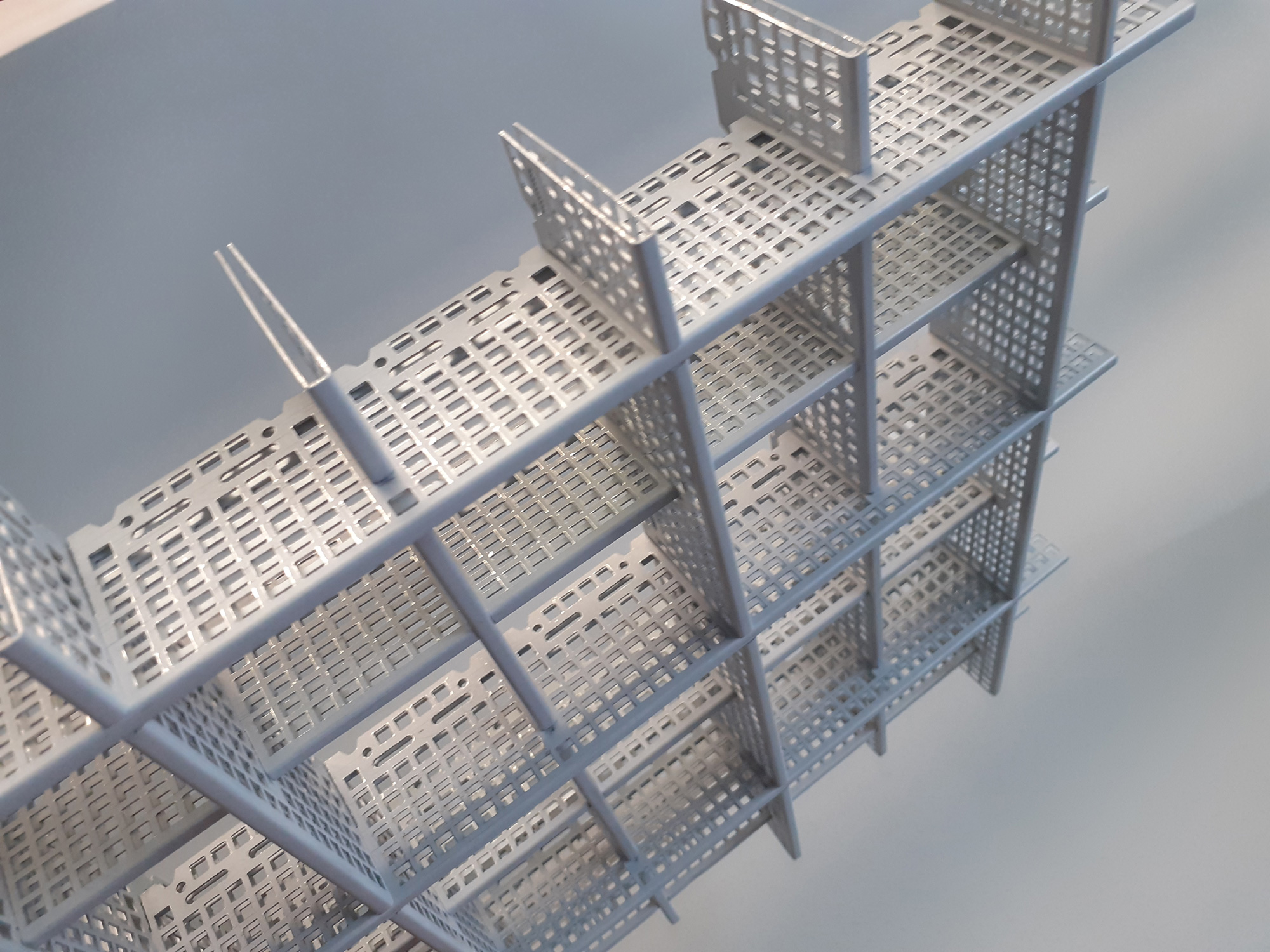

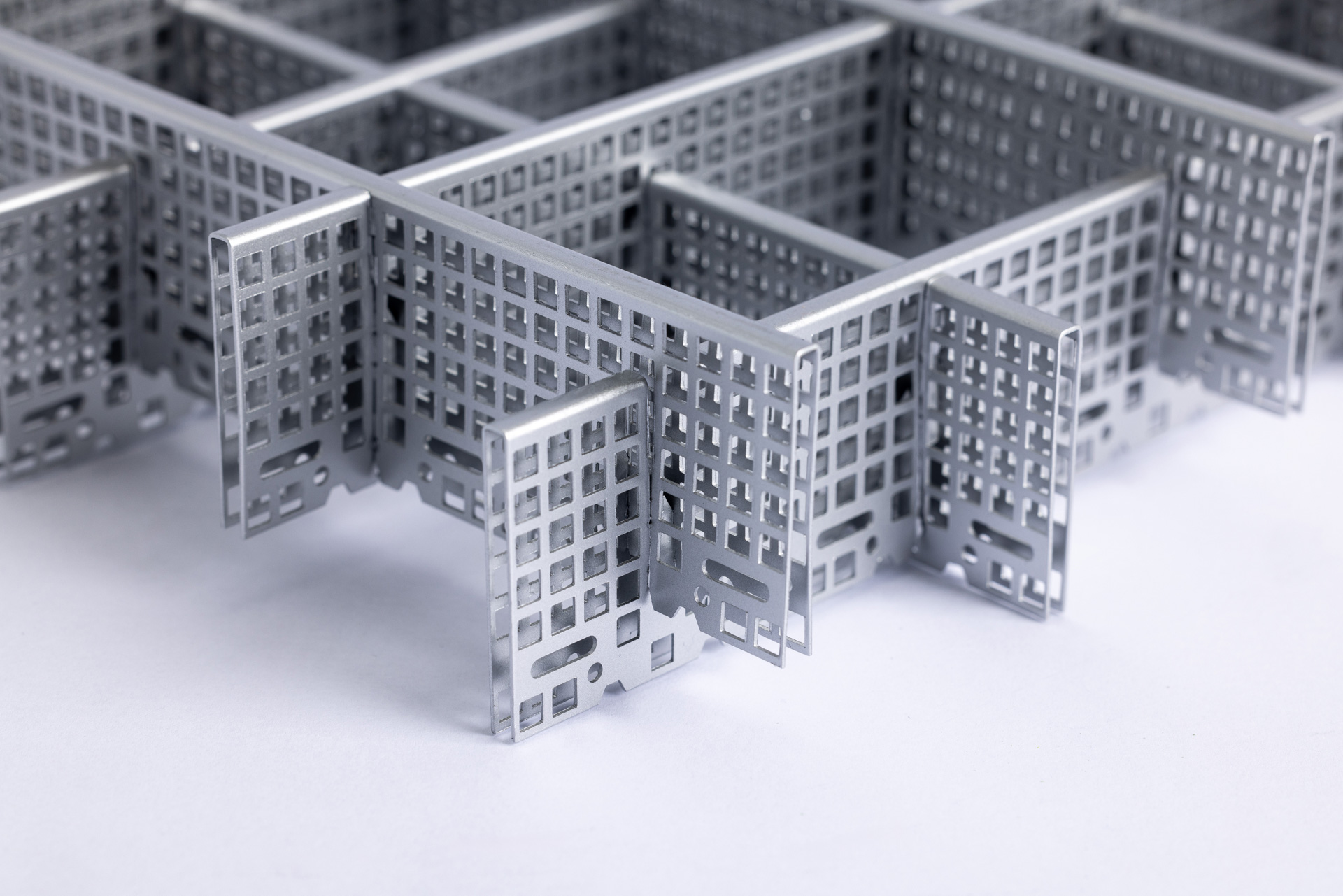

Tetrál B can be supplied either plain or perforated, to achieve aesthetic and acoustic requirements.
Standard perforation patterns are as follows:
hole ø 1,50 mm, 22% free opening, 3 mm pitch.
hole ø 2,50 mm, 19% free opening, 5 mm pitch.
A wide range of finishes either from pre-painted or post-painted aluminium is available, according to the RAL, NCS, PANTONE and SIKKENS colours.

SUPPLY

Tetrál B is usually supplied unassembled. It allows for easier packages and more economic transports. Upon request, the panels can also be supplied assembled.

FIRE REACTION

CEIR ceilings are classified as “non-combustible” according to international standards.
Euroclass A1
Euroclass A2-s1, d0 for the post-painted version.

INSTALLATION

With the ceiling system solutions designed from Ceir for Tetrál B, designers and architects can define their projects while producing a wholly unique design and in a simple way.
Available:
– trackless solutions: Delta, Tetrál system
– visible solutions: T15/T24 system (lay-in / lay-on)
Choose the installation system that meets your needs.

FINISHES
MATERIALS AND COLORS

Alu / Steel
CUSTOM RAL/NCS
Alu / Steel
WOOD
Alu / Steel
FLUO EFFECT
