Deltaceir

What if the ceiling not only changed our perception of rooms, but the actual way we experience them? Deltaceir suggests to you a new and modern design concept, where lines and shapes are indeed an expression of beauty, harmony, and perspective depth, but they also contribute concretely to improve the healthiness of air and, consequently, the well-being of people.

“∆” Profile - PLAIN or PERFORATED

Deltaceir's cells are outlined by aluminium or steel blades that converge with each other originating a closed profile with a ∆ section.

The very particular shape of the profiles drastically reduces the accumulation of dust on the modules of your ceiling and therefore also the dispersion of pollutants harmful to the human body into the air.

Talking about finishes, Deltaceir offers several possibilities of customization with colors and textures suitable to satisfy your aesthetic taste.

The invisible structure with the Delta suspension system allows you to use the modules in creative and targeted ways, such as placing lights anywhere (even between panels) or removing the perimeter profile for a ceiling that conveys a sense of floating freedom.

Thanks to its technical and aestethical features, Deltaceir also performs well for outdoor or vertical use.

Details
SUPPLY FORM
Unassembled / assembled panels
MATERIAL
0,40 mm. th. aluminium
SECTION BLADE
“∆”, base 4 mm, h 30 mm
PITCH SIZE
…x… mm
PANEL SIZE
1200x600 mm, 600x600 mm
FINISH
White - silver - black - others on request
SUSPENSION
Delta system or T15/T24 system
QUANTITY
… m2

Gallery

technical details

FEATURES

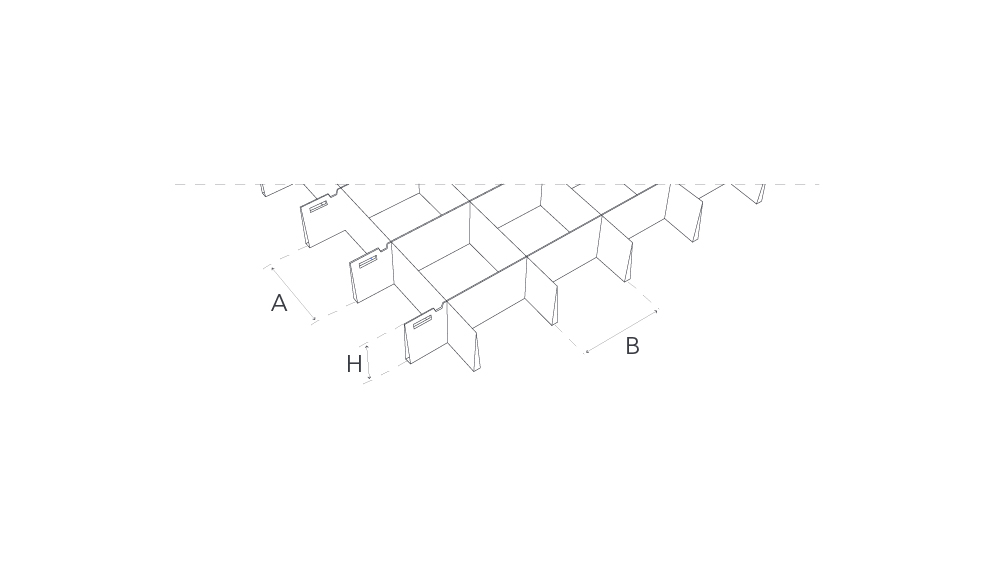

Deltaceir features 1200×600 mm modular panels, made of closed “Δ” profiles with a base of 4 mm and height of 30 mm, forming square cells in a perfect and trackless appearance.
Cell sizes from 30×30 up to 100×100 mm.
Height 30 mm.
The modular panels, 1200×600 mm, are suspended from the concealed Delta suspension system.
Deltaceir blades are made by bending system, which gives: the accuracy of profiles, more square edges and blades perfectly straight.
A wide range of finishes either from pre-painted or post-painted aluminium is available, according to the RAL, NCS, PANTONE and sikkens colours.

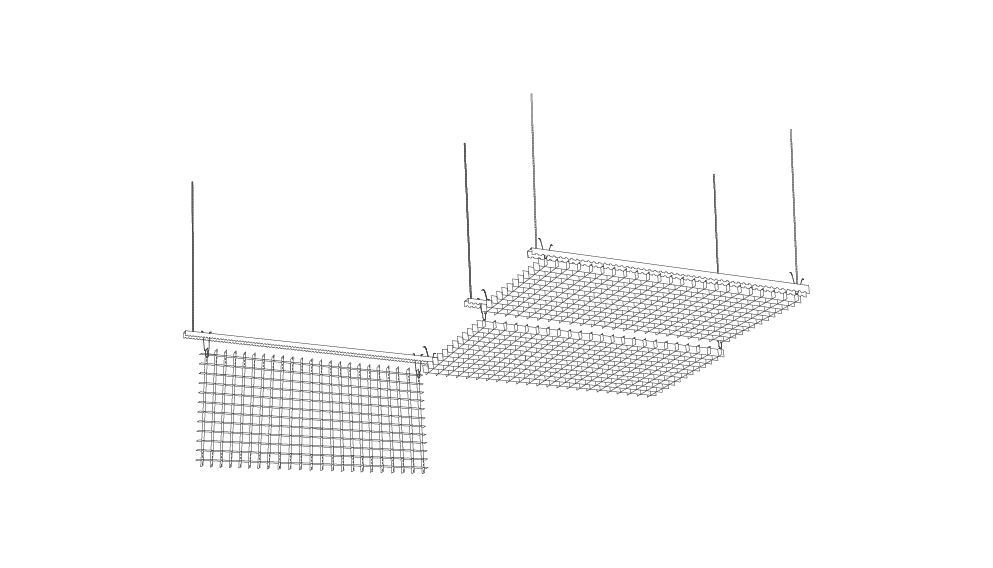

Simple and fast demounting downward Each panel is fully downward demountable and can remain hinged-down in the springs without being totally removed.

SUPPLY FORM

Deltaceir is usually supplied unassembled. It allows for easier packages and more economic transports.
Upon request, the panels can also be supplied assembled.

FIRE REACTION

CEIR ceilings are classified as “non-combustible” according to international standards.
Euroclass A1
Euroclass A2-s1, d0 for the post-painted version.

INSTALLATION

With the ceiling system solutions designed from CEIR for Deltaceir, designers and architects can define their projects while producing a wholly unique design and in a simple way.
Available:
– trackless solutions: Delta system
– visible solutions: T15/T24 system (lay-in / lay-on)
Choose the installation system that meets your needs.

ANTI-SEISMIC VERSION

Upon request, Deltaceir ceiling is also available in earthquake-proof version with Delta Anti-Seismic system (trackless) and T24 Anti-Seismic system (visible).

FINISHES
MATERIALS AND COLORS

EMBOSSED

BRUSHED

DARK WOOD

MEDIUM WOOD

LIGHT WOOD

WHITE

SILVER - REF 9006

CLEAR LACK - ALU COLOR

BLACK

C100_CEC NCS S 4040 Y80R-0001

C100_CEC RAL 3005

C100_ CEC RAL 3007

C100_ CEC RAL 8012

C100_ CEC RAL 8029

C100_ CEC RAL SILVER 9007

C100_ CEC TITANIUM 054.23

ANODISED

MILL FINISH (RAW)

Grids
