Tetrál S 15 or S 24

Tetrál S15 and S24 open cell ceilings capture the suggestion of wooden grids , just like Tetrál B, but they further emphasize the geometric dimension to imprint in your design the perception of absolute balance. These ceiling solutions are also distinguished by the practicality and quickness with which you can perform the installation and removal of the panels.

“U” Profile - PLAIN or PERFORATED

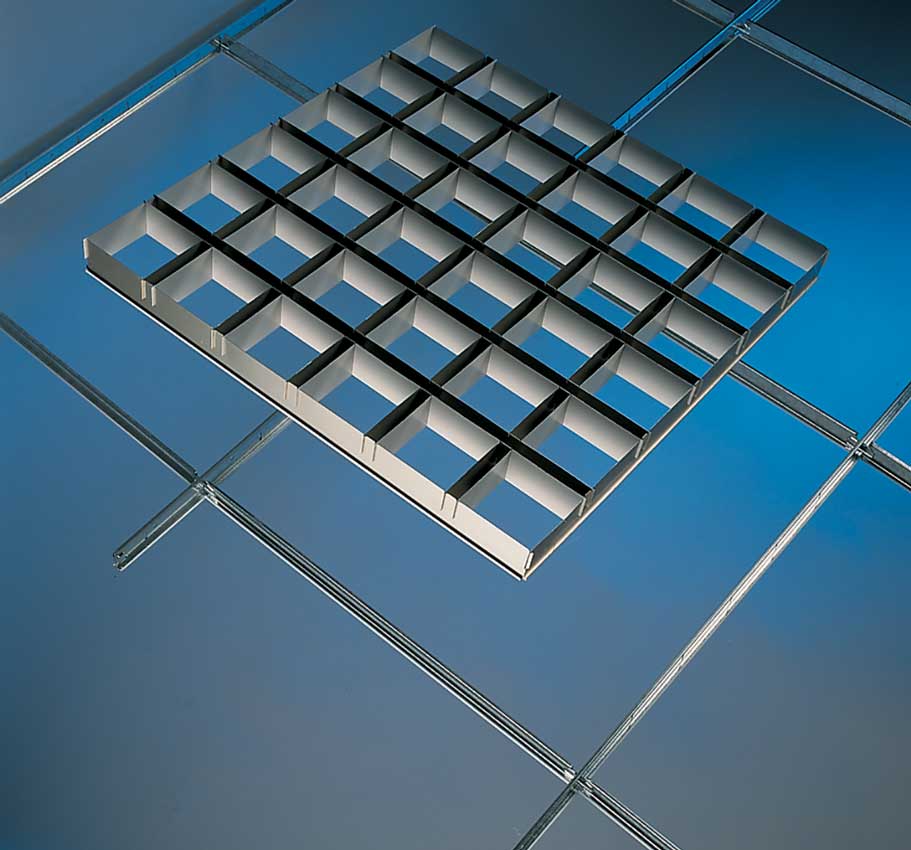

Tetrál S modules are manufactured with aluminium or metal and composed of perfectly squared cells that take shape through a neat interweaving between blades 15 or 24 millimeters wide, depending on the version.

Each panel, together with the frame that encloses it, can be laid on standard T15 or T24 grids with a trackless effect: this way you can not only install your suspended ceiling in very little time, but also access the plenum more easily, since the modular panels are removable with a simple push up.

The aesthetic effect with Tetrál S15 and S24 is superb in its continuity, as it does not let you see any differences between the various elements that make up the ceiling system.

You can match the performance in terms of design and light animation with the benefits of acoustic e ambient comfort by microperforating the panels and adding sound-absorbing pads and fleece.

Details
SUPPLY FORM
Unassembled / assembled panels
MATERIAL
0,40 mm. th. aluminium
SECTION BLADE
“U”, base 15 or 24 mm, h 30/40/50 (S15) or h 35 mm (S24)
CELL SIZE
…x… mm
PANEL SIZE
600x600 mm (1200x600 mm)
FINISH
...
SUSPENSION
Integrated suspension by T15 / T24 grid
QUANTITY
… m2

Gallery

technical details

FEATURES

Tetrál S15 & S24 mm feature 600×600 mm modular panels, made up of “U” shaped profiles with 15 and 24 mm base, which suitably coupled form a
square cell, to be inserted in a frame. Cell sizes from 60×60 mm up to 300×300 mm. Heights 30/40/50 mm (S15) and 35 mm (S24). Tetrál S15 &

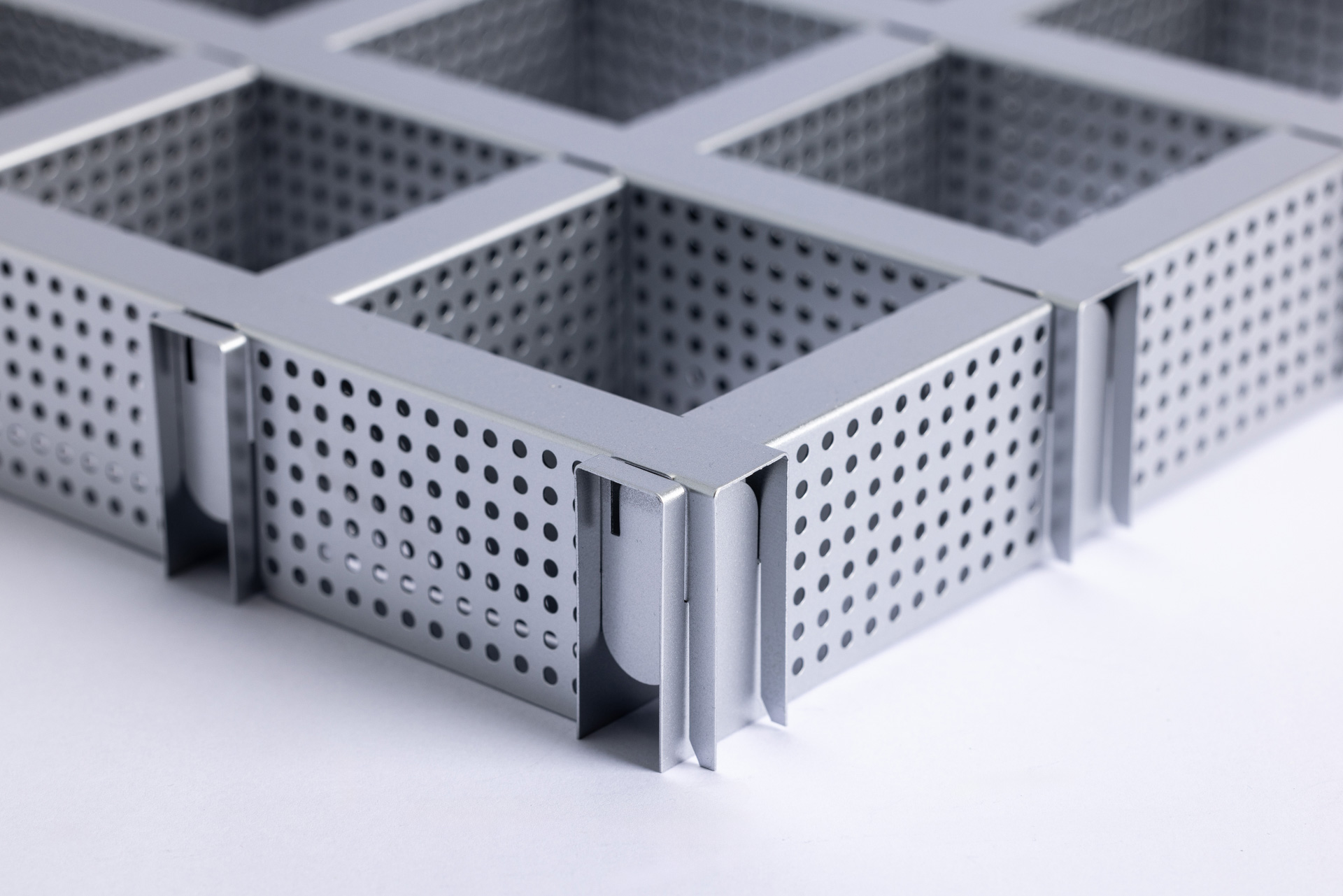

S24 blades are made by bending system, which gives: the accuracy of profiles, more square edges and blades perfectly straight. Tetrál S15 & S24 mm can be supplied either plain or perforated, to achieve aesthetic and acoustic requirements.
Standard perforation patterns are as follows:
hole ø 1,50 mm, 22% free opening, 3 mm pitch
hole ø 2,50 mm, 19% free opening, 5 mm pitch.
A wide range of finishes either from pre-painted or post-painted aluminium is available, according to the RAL, NCS, PANTONE and SIKKENS colours.

SUPPLY FORM

Tetrál S15 & S24 mm are usually supplied unassembled. It allows for easier packages and more economic transports. Upon request, the application of TNT or the support of a soundabsorbing pad improves sound attenuation in
rooms.

FIRE REACTION

CEIR ceilings are classified as “non-combustible” according to international standards.
Euroclass A1
Euroclass A2-s1, d0 for the post-painted version.

INSTALLATION

With the 15 mm or 24 mm option of Tetrál S ceiling system designed from CEIR, designers and architects can define their projects while producing a wholly unique design and in the simplest way, using the standard T15 or T24
suspension grid.
Available:
– trackless solutions: T15 / T24 system (lay-on)
Choose the version that meets your needs.

ANTI-SEISMIC VERSION

Upon request, Tetrál S 24  ceiling is also available in earthquake-proof version with T24 Anti-Seismic system.

FINISHES
MATERIALS AND COLORS

EMBOSSED

BRUSHED

DARK WOOD

MEDIUM WOOD

LIGHT WOOD

WHITE

SILVER - REF 9006

CLEAR LACK - ALU COLOR

BLACK

C100_CEC NCS S 4040 Y80R-0001

C100_CEC RAL 3005

C100_ CEC RAL 3007

C100_ CEC RAL 8012

C100_ CEC RAL 8029

C100_ CEC RAL SILVER 9007

C100_ CEC TITANIUM 054.23

C100_CEC 0518 BRONZED BRASS

ANODISED

MILL FINISH (RAW)**
