Reflex

The exclusive multi-cell design of Reflex was conceived by CEIR to let you delineate with grid a flowing and sinuous visual path, within which you can immerse refined plays of light and shadow according to your taste.

“V” Profile - PLAIN or PERFORATED

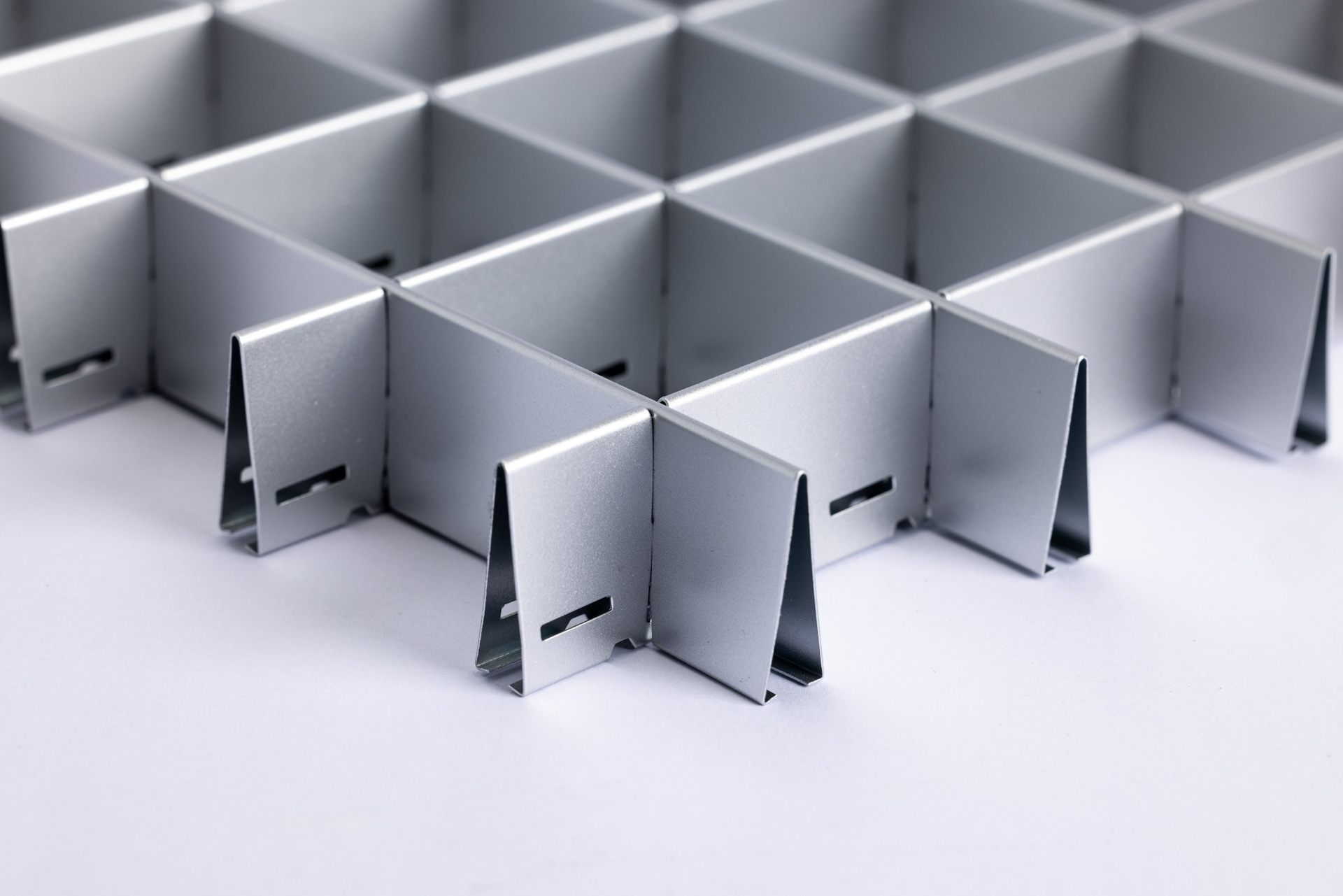

Reflex modular panels consist of profiles with a V-shaped parabolic cross-section and are distinguished as much by their refined aesthetics as by the very high level of lighting performance.

Thanks also to the quality of the material used to manufacture them (purest anodized aluminium polished antiridescent) these grids have a dual effect as a diffuser for artificial lighting and as a continuous diffuser for natural light sources, thus also contributing to increased energy savings.

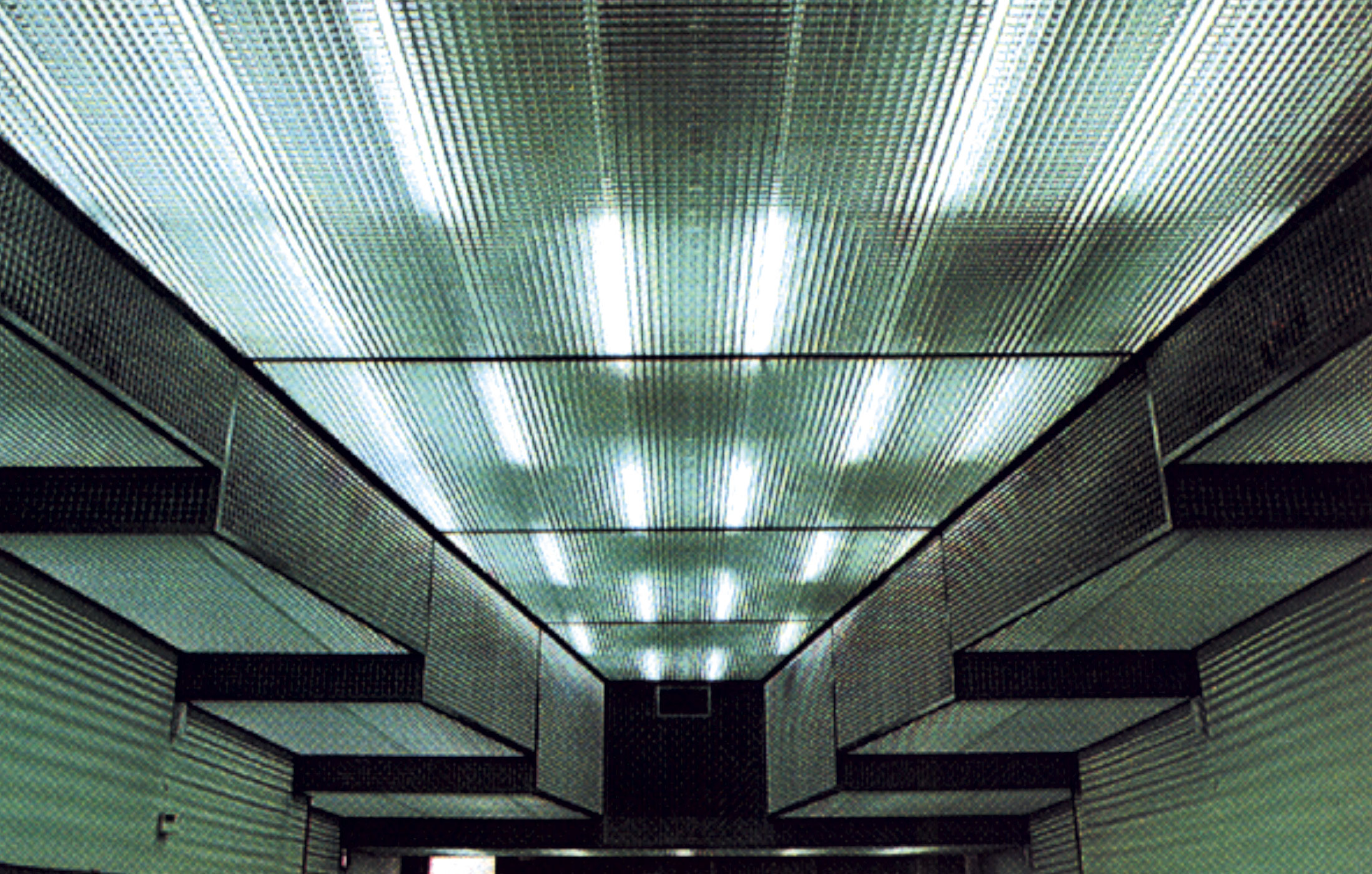

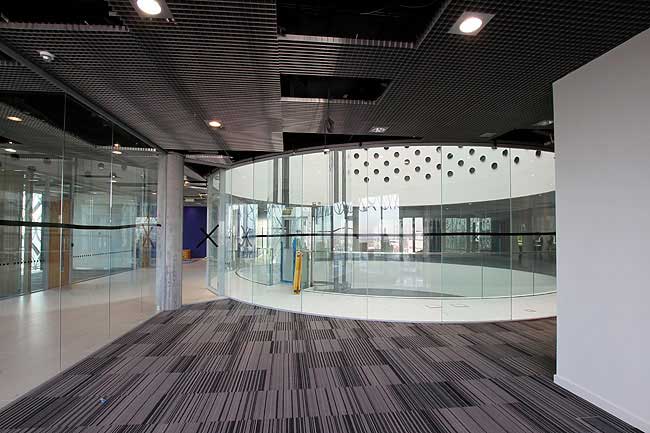

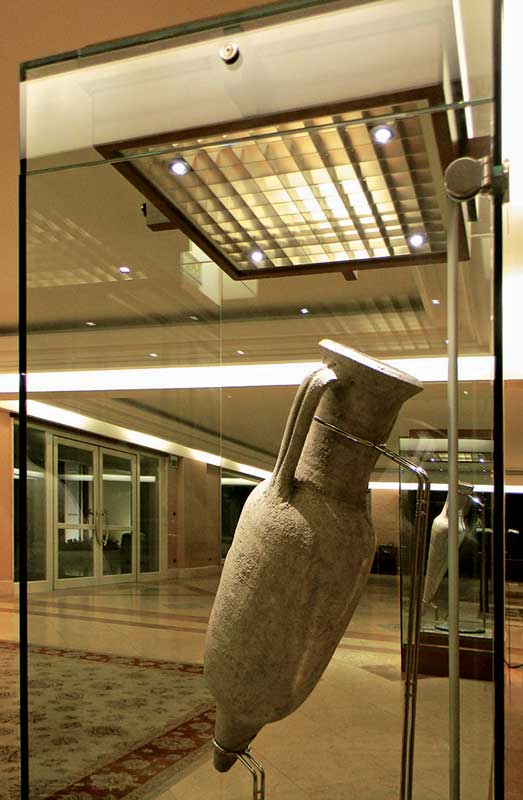

With Reflex panels you can optimize lighting diffusely by installing a complete metal ceiling in banks, workplaces, commercial venues or other large spaces, or concentrate your intervention in specific areas, for example, to highlight display cases inside a museum. Whatever use you make of it, you will always be assured of an uncompromising visual result: the panel's parabolic grid prevents any form of glare, whether direct or indirect.

Specially designed to be installed with trackless systems, Reflex can also be simply laid over a T15/T24 grid system.

Details
SUPPLY FORM
Assembled panels
MATERIAL
0,40 mm. th. aluminium
SECTION BLADE
“V”, h 30 mm
CELL SIZE
From 50x50 mm
PANEL SIZE
1200x600 mm, 800x800 mm
FINISH
...
SUSPENSION SYSTEM
Delta type “A” or T15/T24 system
QUANTITY
… m2

Gallery

technical details

FEATURES

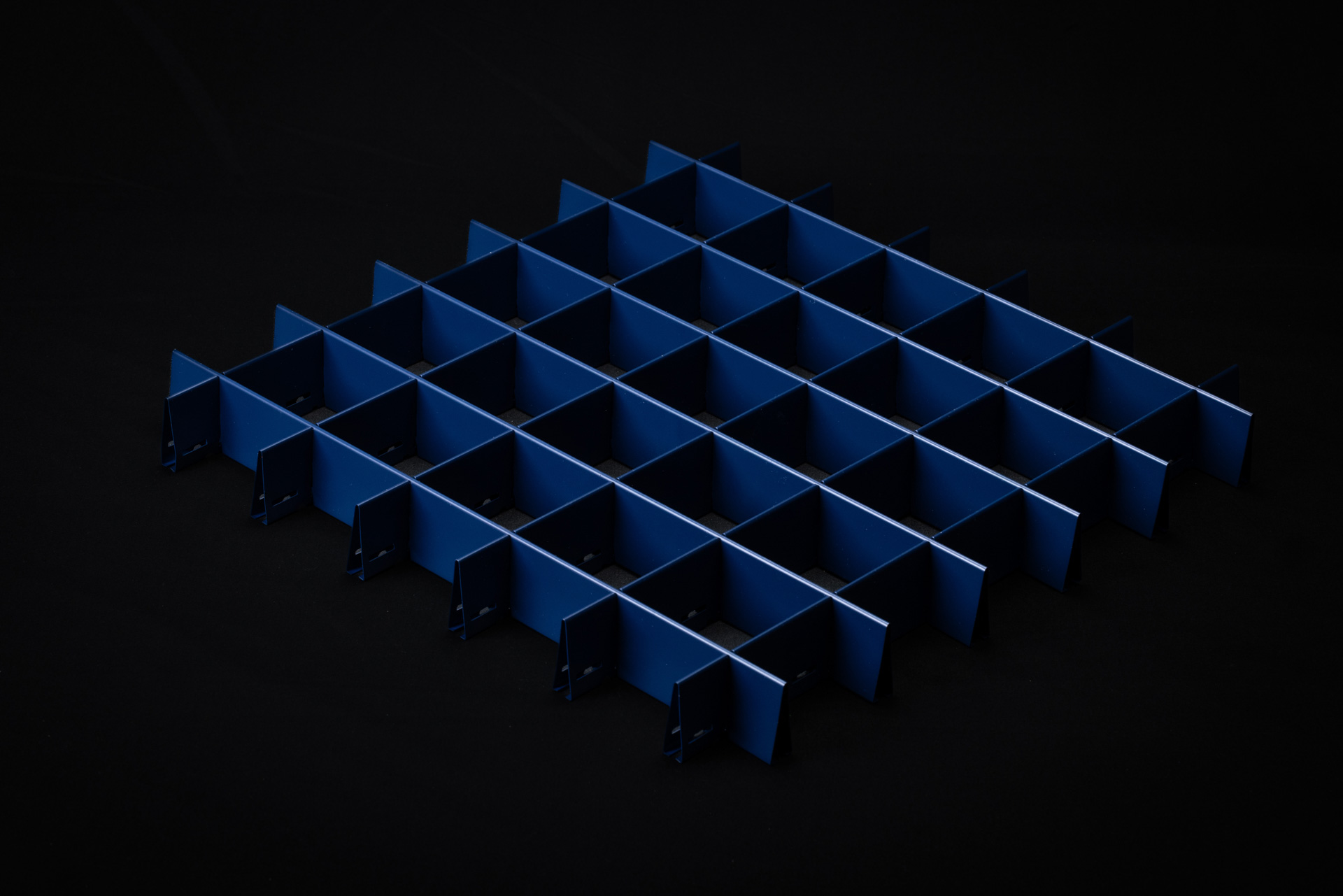

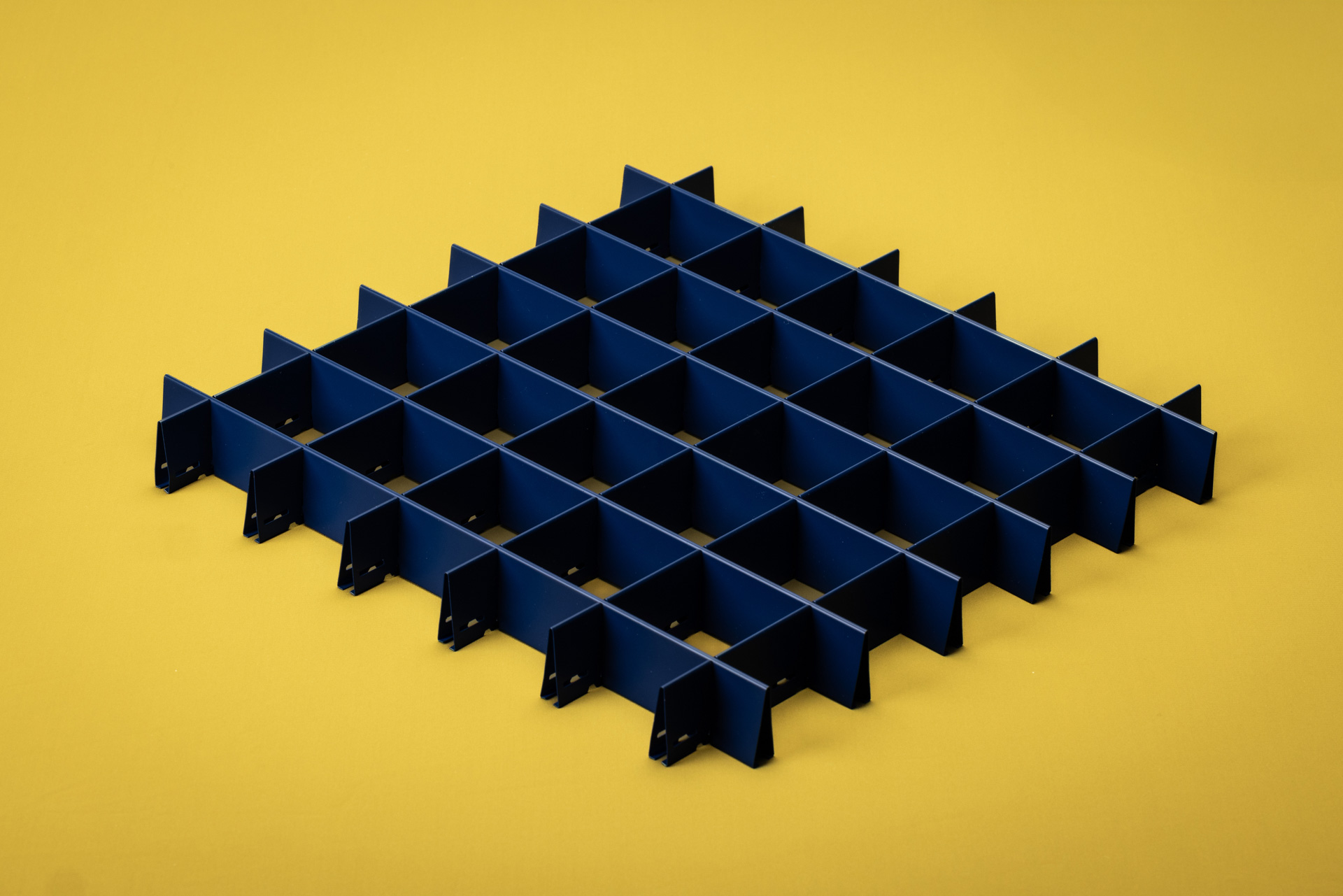

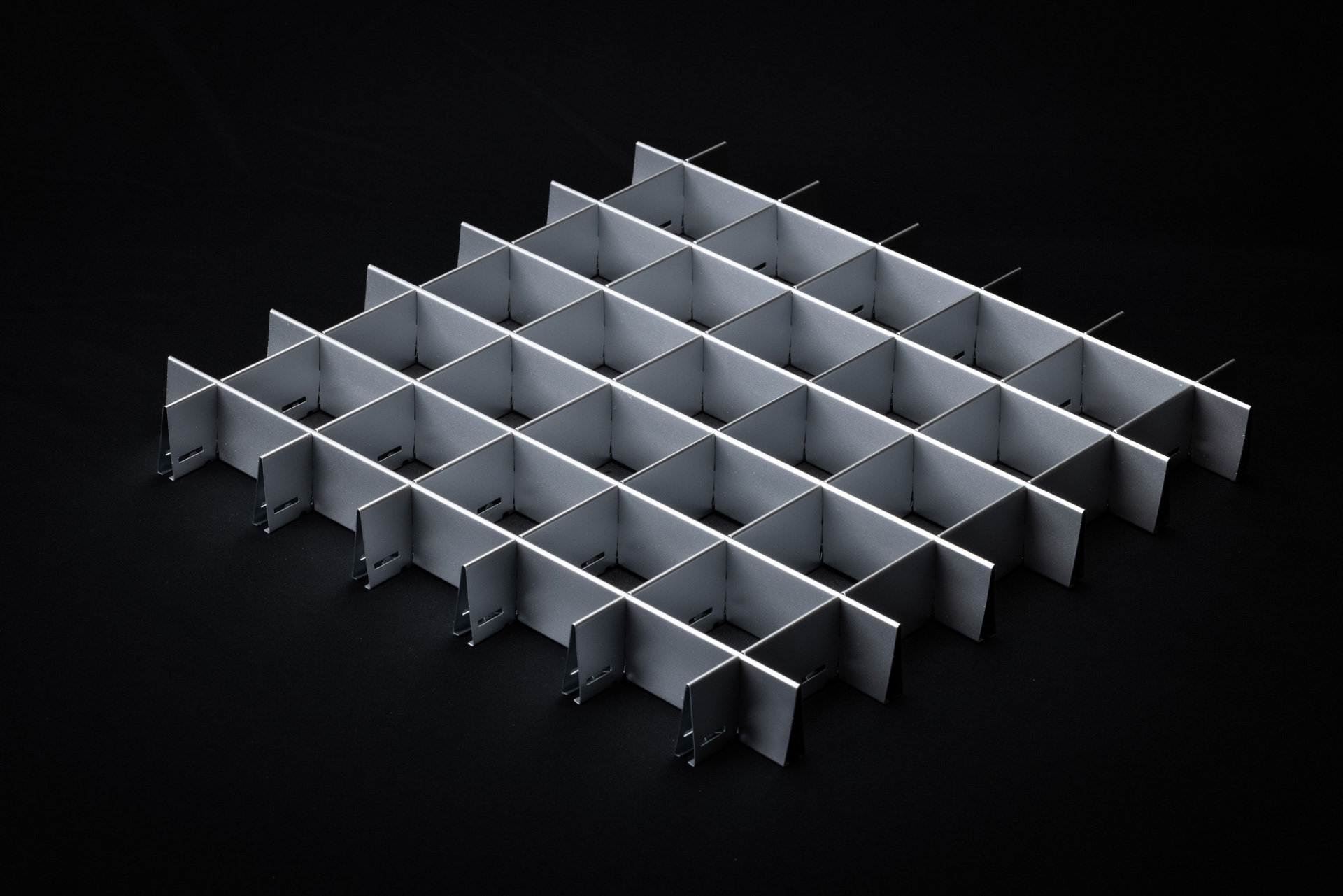

Reflex features 800×800 or 1200×600 mm modular panels, made of “v” profiles 30 mm high, which suitably assembled form a square cell. standard
cell size 50×50 mm.
height 30 mm. upon request, special modules and cell sizes are available. the Reflex blades are made by bending system, which gives:
the accuracy of profiles, more square edges and blades perfectly straight.

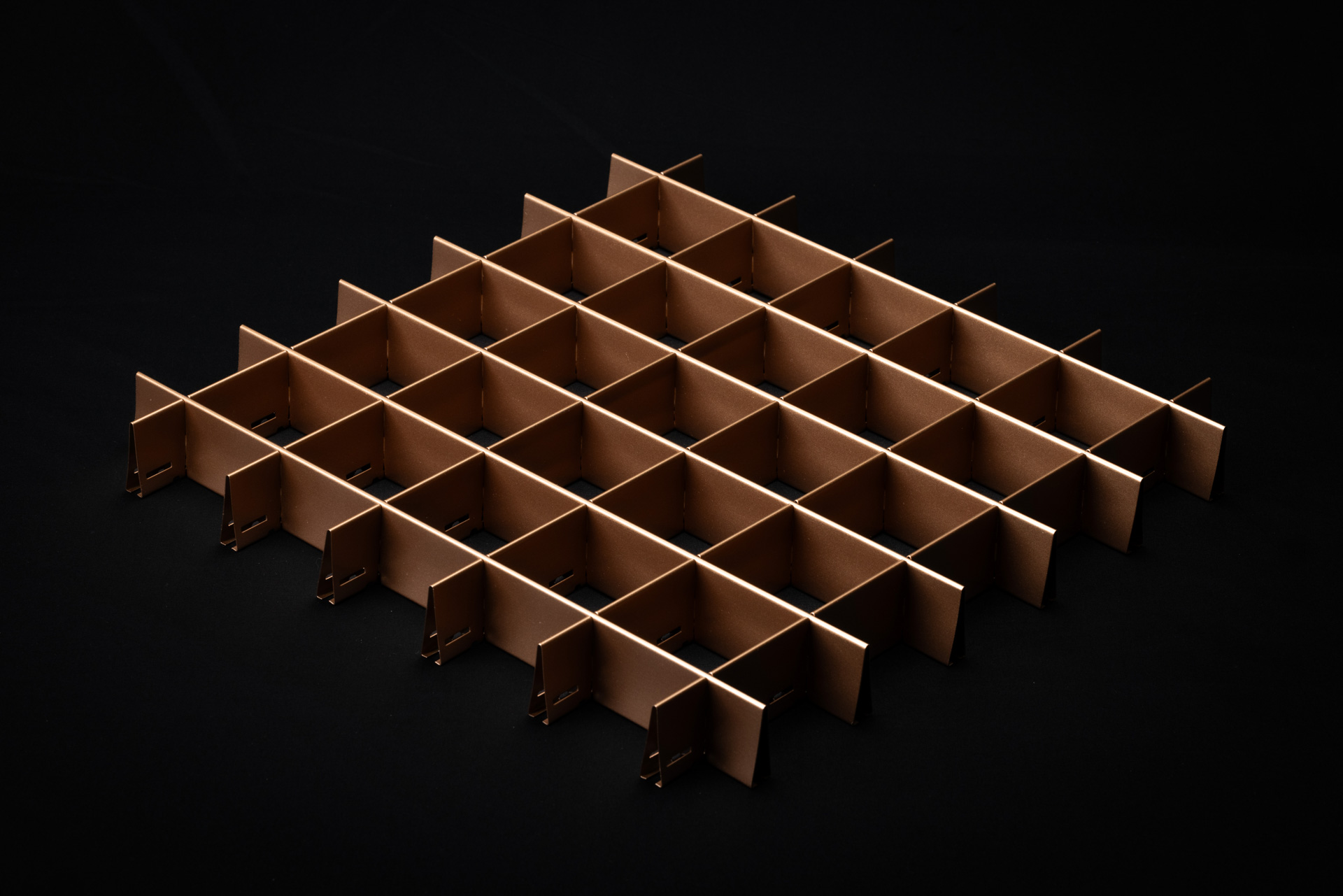

Reflex is usually supplied in anti-iridescent semispecular anodised aluminium or gold finish.
Upon request, a wide range of finishes either from pre-painted or post-painted aluminium is also available, according to the RAL, NCS, PANTONE
and SIKKENS colours.
Reflex – lighting system.
Reflex excludes any glare, both direct and indirect.
The special paraboliticity of the grill prevents the direct glare and the reflection of lighting on the ceiling surface. Thanks to its lighting technology,
Reflex has the double effect of a diffuser for artificial lighting and a diffuser for natural light, with energy saving thanks.

SUPPLY FORM

REFLEX is always supplied assembled.

FIRE REACTION

CEIR ceilings are classified as “non-combustible” according to international standards.
Euroclass A1
Euroclass A2-s1, d0 for the post-painted version.

INSTALLATION

With the ceiling system solutions designed from CEIR for Reflex, designers and architects can define their projects while producing a wholly unique design and in a simple way.
Available:
– trackless solutions: Delta, Type A system
– visible solutions: T15/T24 system (Lay-in / Lay-on)
Choose the installation system that meets your needs.

ANTI-SEISMIC VERSION

Upon request, Reflex ceiling is also available in earthquake-proof version with Delta Anti-Seismic system (trackless) and T24 Anti-Seismic system (visible).

FINISHES
MATERIALS AND COLORS

EMBOSSED

BRUSHED

DARK WOOD

MEDIUM WOOD

LIGHT WOOD

WHITE

SILVER - REF 9006

CLEAR LACK - ALU COLOR

BLACK

C100_CEC NCS S 4040 Y80R-0001

C100_CEC RAL 3005

C100_ CEC RAL 3007

C100_ CEC RAL 8012

C100_ CEC RAL 8029

C100_ CEC RAL SILVER 9007

C100_ CEC TITANIUM 054.23

ANODISED

MILL FINISH (RAW)
