Monolama

The monolama grid is the most popular open microcell metal ceiling system, a “classic” of contemporary architecture that CEIR has revisited and perfected over the years to offer you, today, a more versatile and lightweight solution than ever before.

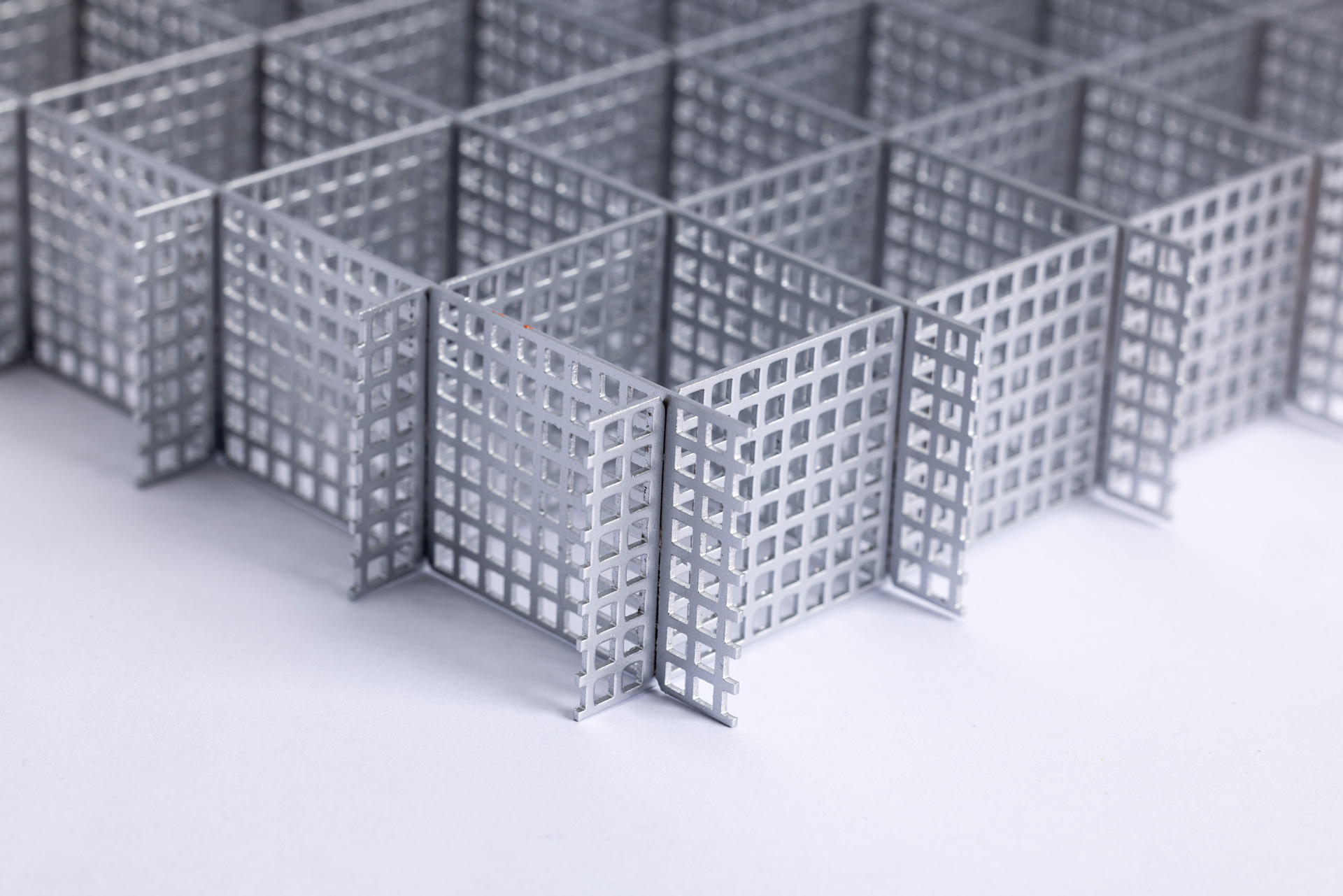

“SINGLE” PROFILES - PLAIN or PERFORATED

Gridded modules are composed of square or rectangular cells with a very thin aluminium monolama profile, smooth or perforated. The simplicity and finesse of this detail is designed to allow you to bring geometric order and visual interest to any space, whether small or large, adding depth and backlighting that can really make your design concept shine.

In addition, the small cell size also allows monolama grid to be used for other purposes than suspended ceilings, for example, for masking ventilation system, shielding lighting fixtures, and for other types of vertical and decorative installations.

Made from 100% recyclable, ultra-light, durable and high-performance material, CEIR's gridded ceiling can be installed with concealed or exposed suspension and is available in a wide range of colors and finishes to make you to achieve the desired look.

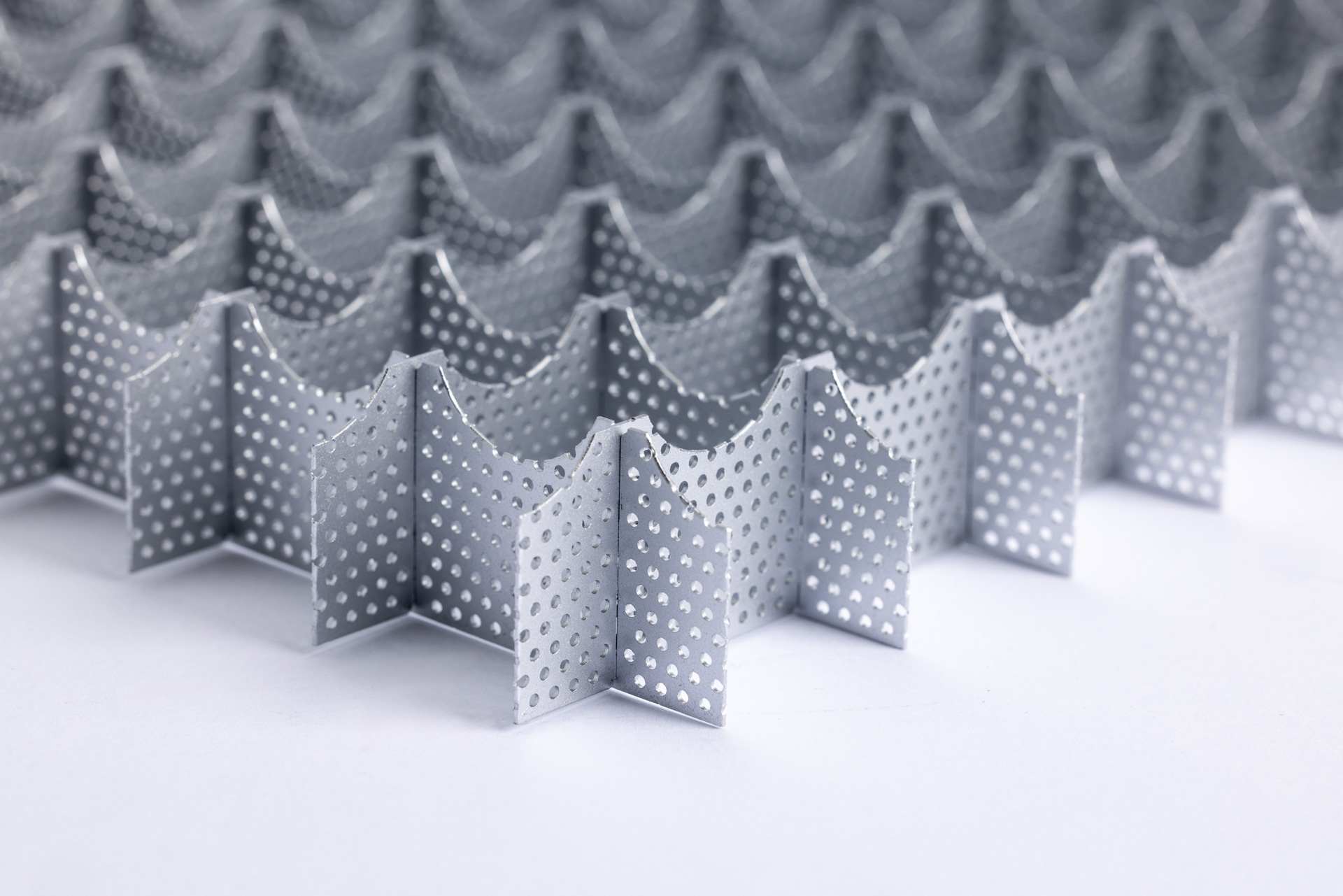

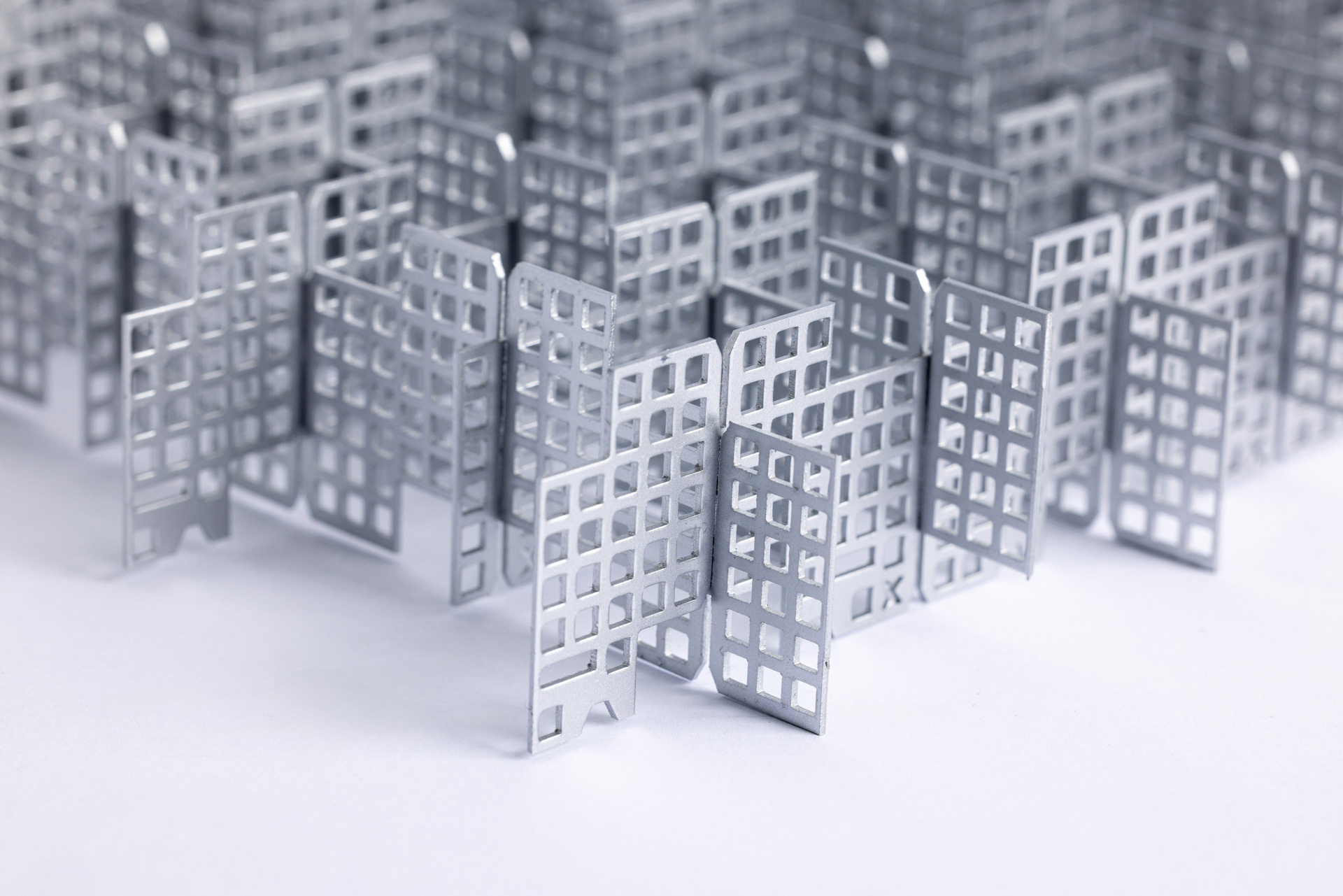

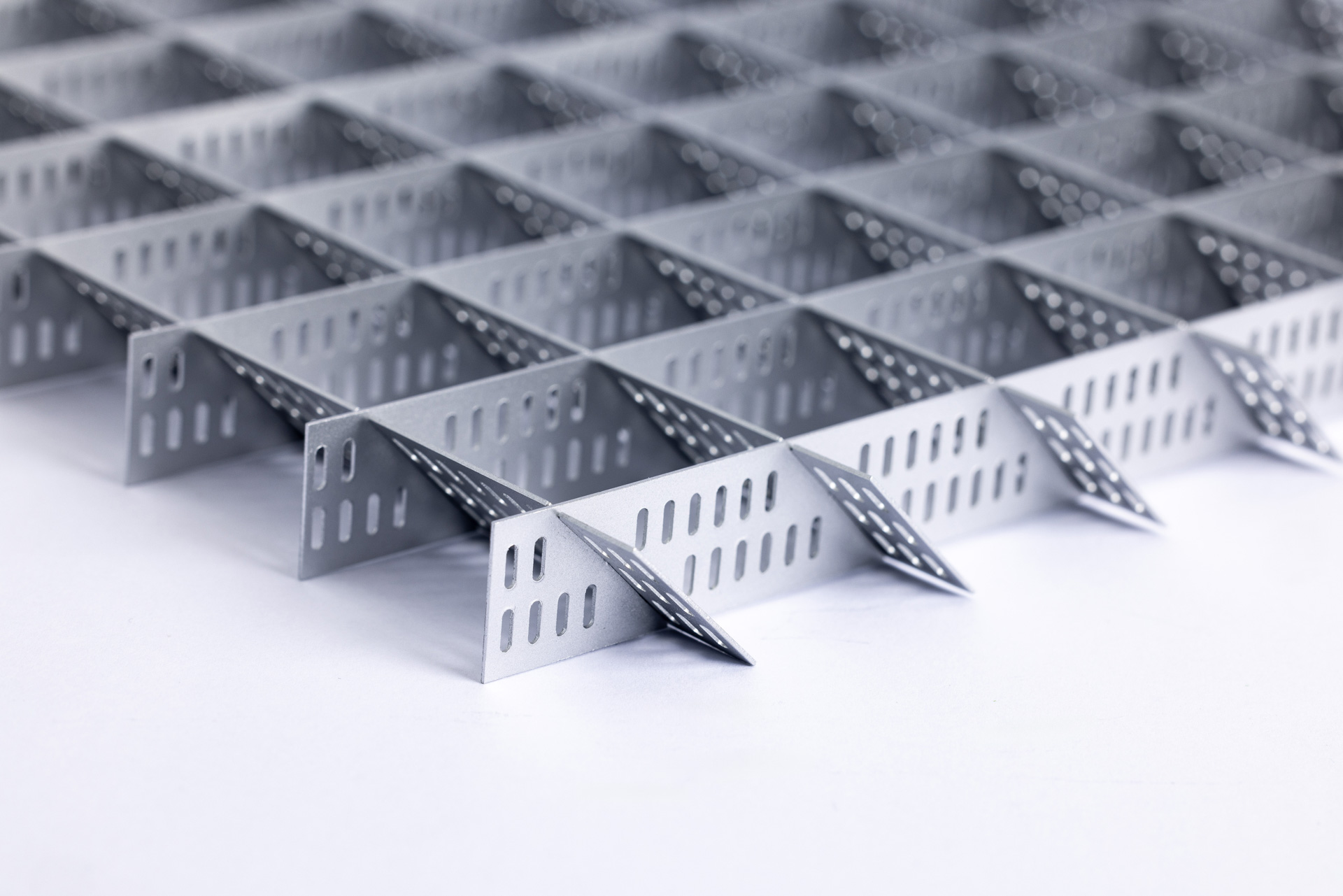

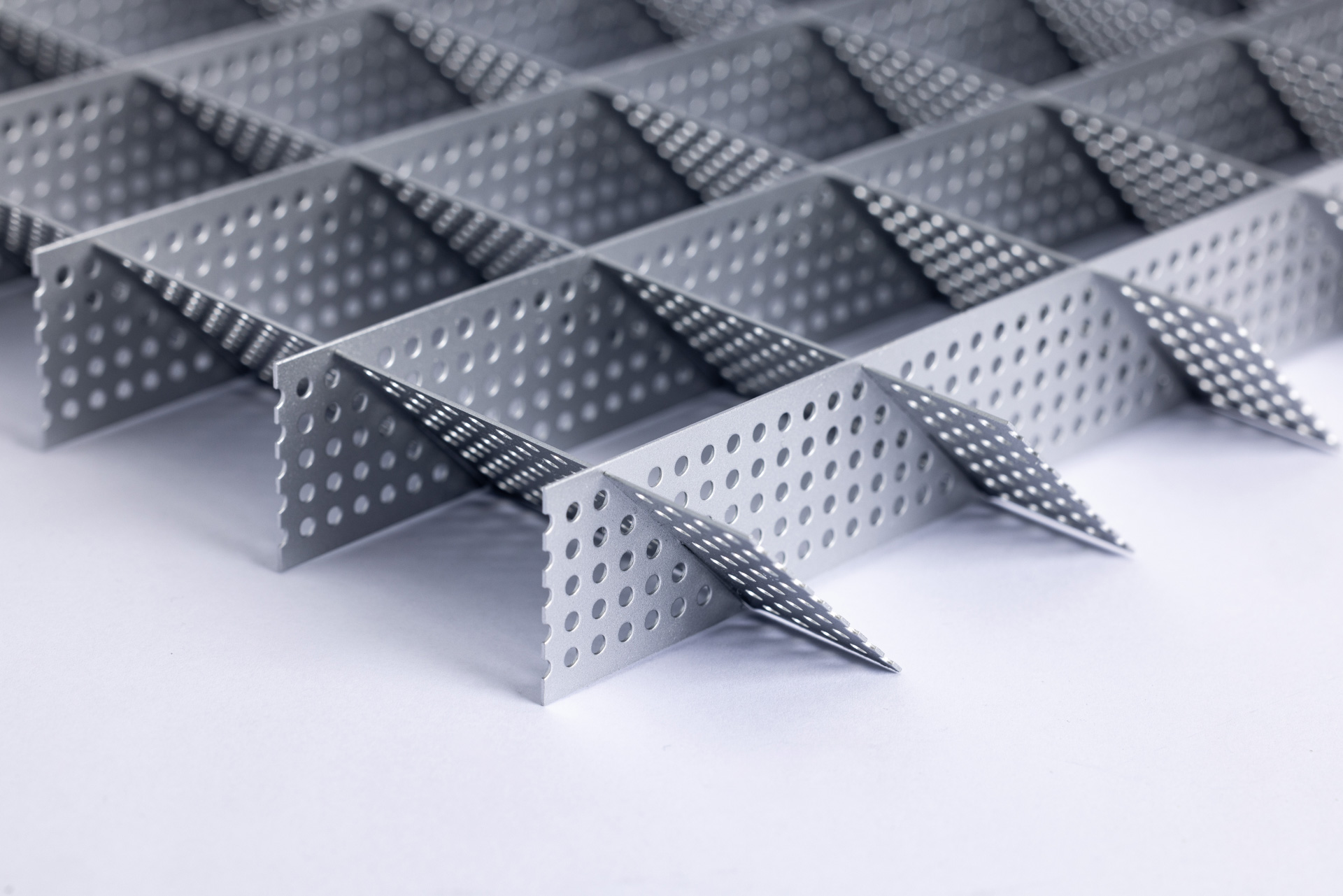

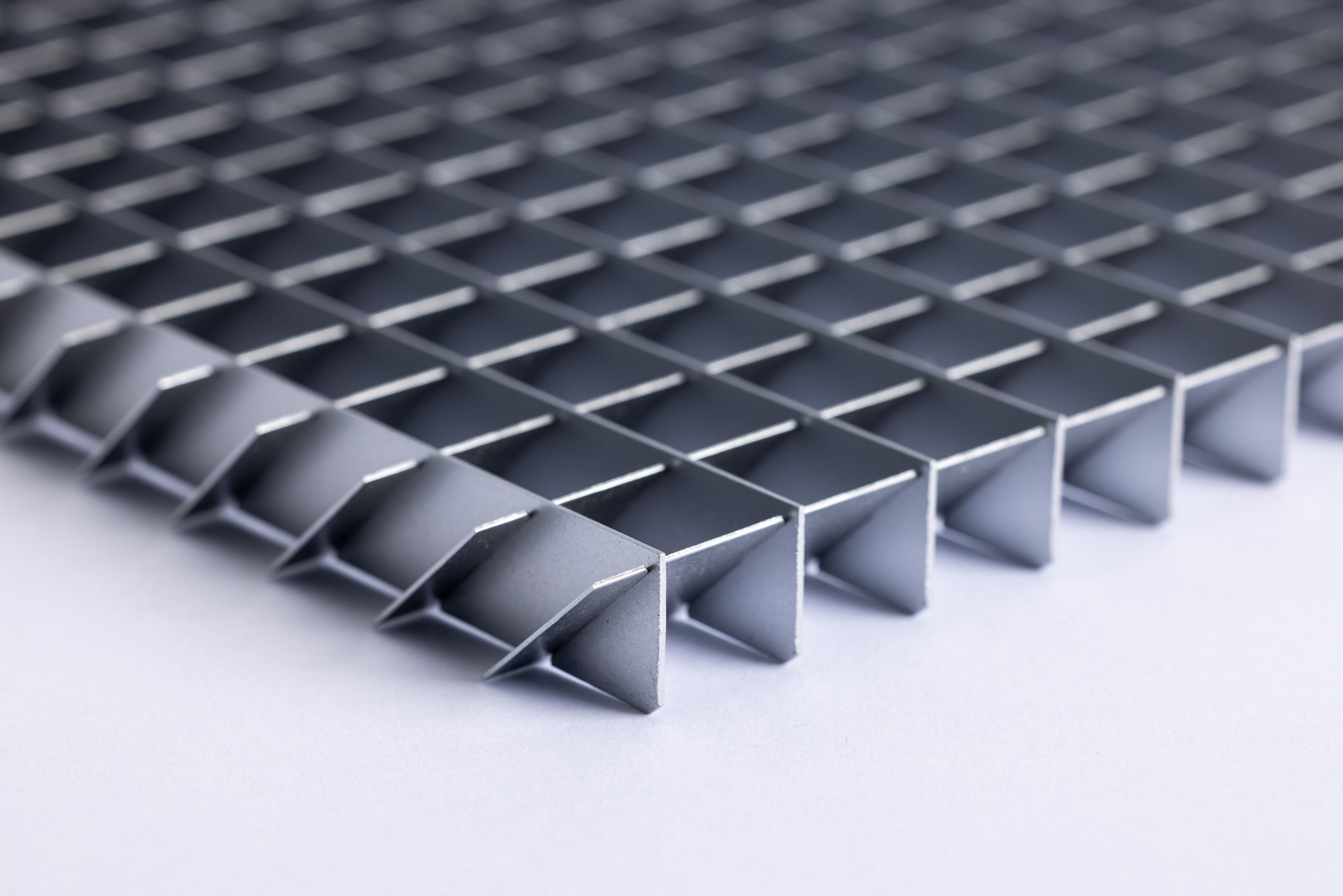

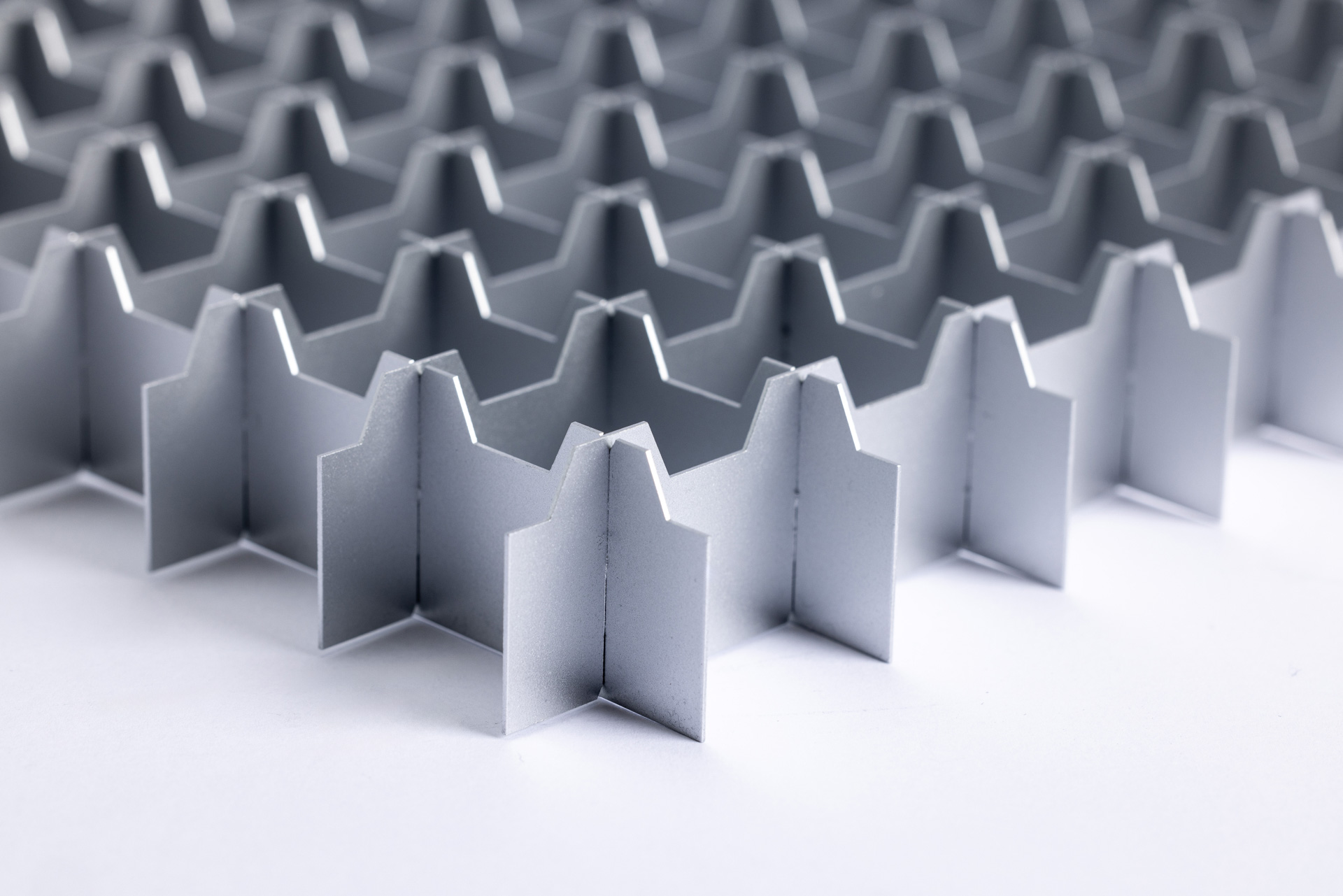

The three main versions of Monolama are straight-bladed QR1, with inclined blade QRi, with multidirectional blade QRs, QRy QRx. Also panels with other cell types are manufactured upon request.

Details
SUPPLY FORM
Assembled panels
MATERIAL
0,50 - 2,00 mm th. aluminium
SECTION BLADE
Single blade h 13 - 100 mm
CELL SIZE
…x… mm
PANEL SIZE
1200x600 mm, 600x600 mm
FINISH
White - silver - black - others on request
SUSPENSION SYSTEM
Delta type “A”, type “B”, or T15/T24 system
QUANTITY
… m2

Gallery

technical details

FEATURES

The 3 main versions of Monolama are:
– straight-bladed QR1
– with inclined blade QRi
– with multidirectional blade QRs, QRy QRx.
Panels with other cell types are manufactured upon request.

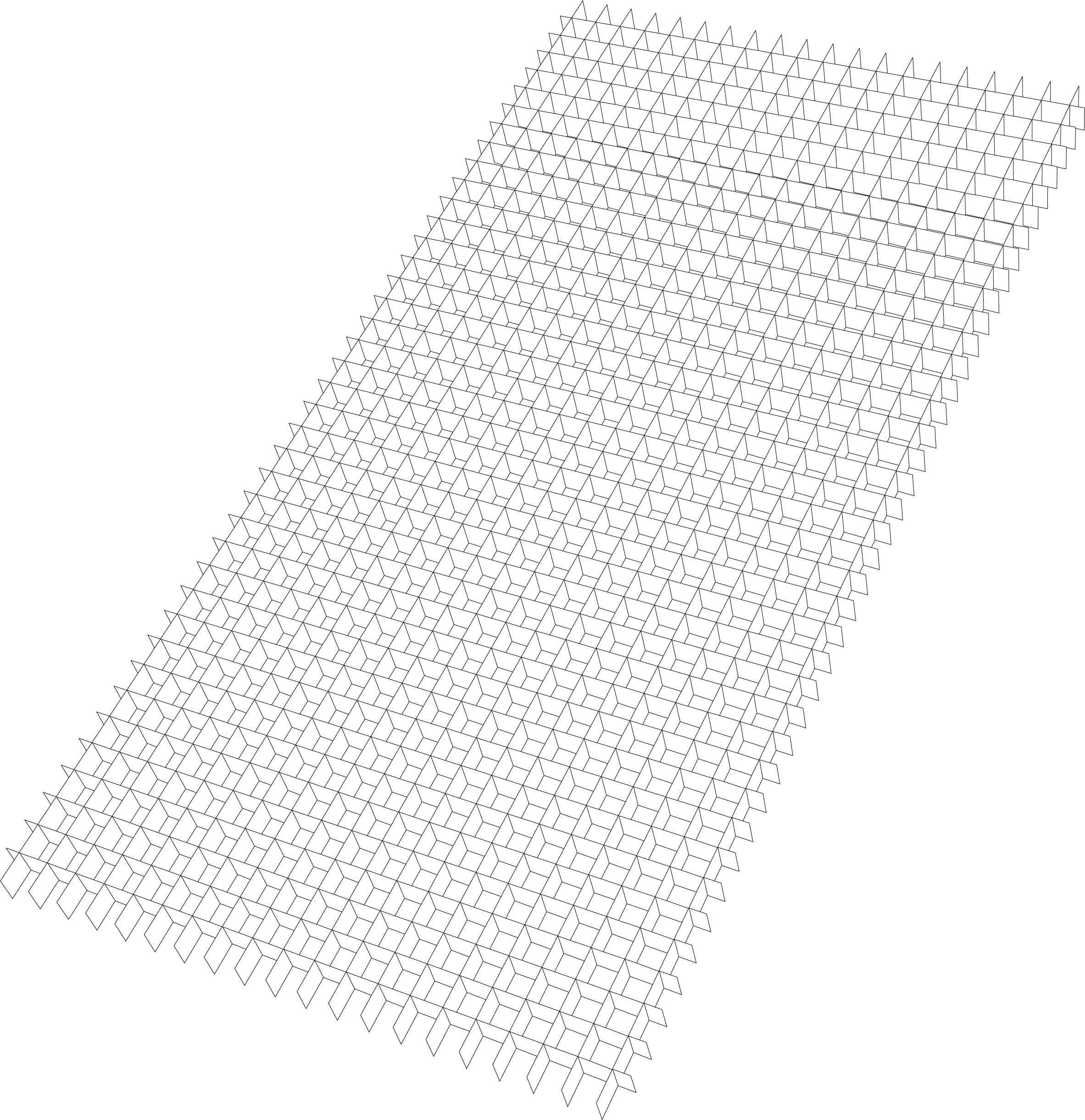

Monolama grids come in 1200×600 mm modular panels, composed of aluminum blades that assembled form cells whose dimensions vary depending on the request.
Cell size from 13×13 mm up to 150×150 mm.
Height from 13 mm up to 100 mm.
Monolama modules can be microperforated to meet the requirements of sound absorption and room ventilation.
Standard perforations are:
1.50 mm hole, 22% opening, 3 mm pitch
2.50 mm hole, 19% opening, 5 mm pitch.
Both for pre-painted and post-painted aluminum a wide choice of finishes is available according to the colors in the RAL, NCS, pantone and sikkens. By intervening with painting after assembly, the blades
appear in a perfect and uniform color on the entire surface.

INSTALLATION

With the ceiling system solutions designed from Ceir for Monolama, designers and architects can define their projects while producing a
wholly unique design and in a simple way.
Available:
– trackless solutions: Delta, Type A, Type B system
– visible solutions: T15/T24 system (lay-in / layon) Choose the installation system that meets your needs.

REACTION TO FIRE

CEIR ceilings are classified as “non-combustible” according to international standards.
Euroclass A1
Euroclass A2-s1, d0 for the post-painted version.

SUPPLY

Monolama panels are always supplied assembled.

ANTI-SEISMIC VERSION

Upon request, Monolama ceiling is also available in earthquake-proof version with Delta Anti-Seismic system (trackless) and T24 Anti-Seismic system (visible).

FINISHES
MATERIALS AND COLORS

EMBOSSED

BRUSHED

WHITE

SILVER - REF 9006

CLEAR BLACK - ALU COLOR

BLACK

C100_CEC NCS S 4040 Y80R-0001

C100_CEC RAL 3005

C100_ CEC RAL 3007

C100_ CEC RAL 8012

C100_ CEC RAL 8029

C100_ CEC RAL SILVER 9007

C100_ CEC TITANIUM 054.23

ANODISED

MILL FINISH (RAW)
